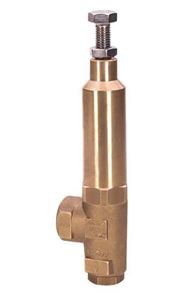

PA VS 500 Safety & Pressure Regulating Valve 8,100 PSI. With rated pressures up to 7,250 PSI and flows up to 21.0 GPM
Features:• Compensated pressure regulating valve• Regulates the bypass of the fluid with a minimum variation of the pressure• Suitable to be utilized as a safety valve• Central body and fittings in brass• Internal components in Sst• Moving parts totally protected
AS SAFETY VALVE ONLY FOR PRESSURE WASHERS:• Secure intervention discharging all the flow• Prompt and effective damping action against pressure spikes
AS A PRESSURE REGULATING VALVE:• High balancing to guarantee slight variations of the rated pressure when the flow varies in bypass
Technical Manual SHEET
Specifications:• Rated Pressure: 7,250 PSI• Permissible Pressure: 8,100 PSI• Rated Temperature: 195° F• Rated Flow Rate: 21.0 GPM• Material: Brass and Sst• Inlet Port: 1/2" F• Bypass Port: 3/8" F• AR40399• Weight: 51.53 Oz
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
PA VB 85/310 Rv and General YUB21405 blue spring trapped pressure unloader valve. At gun closure, the waterflow is discharged in bypass reducing the pressure in the system upstream of the valve
Featuring: • Dynamic seals made up of O-ring and Back-up ring• Optimized internal passages that guarantee reduced pressure loss• Anti-rotation device of the piston positioned inside the valve and obtained by an hexagonal sector of the piston itself• O-rings of the fittings positioned upstream to the thread : no risk of fittings ejected in case of overpressure• Double feed connection• Suitable for recycled water and strong detergents
Data Sheet
Specifications:• Spring Color: Blue• Permissible Pressure: 4,500 PSI• Rated Pressure: 4,050 PSI • Rated Flow Rate: 21.0 GPM• Rated Temperature: 195° F• Inlet Ports (2): 1/2" NPT F• Outlet Port: 1/2” NPT F• Bypass Port: 1/2” NPT F• Replaces: 60.0485.65, VB 85/280, 60.0400.65, VB 80/280 and YUB2140• Weight: 40.63 Oz
Features:• Positioning of all o-ring seals before the threads, for greater mechanical strength• Shutter axially guided for greater stability at high flow rates• Stainless steel seat and shutter designed by fluid dynamics study to eliminate instabilities and turbulences with great benefit in terms of long life• Stem with internal anti-rotation system, for greater life• Stem o-ring seal is placed on the connecting stem guide to allow the stroke of the stainless steel stem on o-ring, increasing the life• Hexagonal check valve for a better smoothness
Specifications:• Spring Color: Blue• Rated Pressure: 4,640 PSI• Permissible Pressure: 5,075 PSI• Rated Temperature: 194° F• Rated Flow Rate: 26.4 GPM• Material: Brass body & fittings• Inlet Port: 1/2" F• Outlet Port: 1/2” F• Bypass Port: 1/2” F• Weight: 39.33 Oz
PA RL124 Heavy Duty High Volume Spray Gun 1,950 PSI 32 GPM
Features• Covered by shockproof plastic semi-housings• Seat and ball in Sst• Entirely built of Sst and body in brass• Ergonomic construction• Minimum fatigue for trigger opening• Minimum load loss (see chart)• No fluid passage upon trigger release
Specifications • Rated Pressure: 1,750 PSI• Permissible Pressure: 1,950 PSI • Max Flow: 32.0 GPM• Rated Temp: 210° F.• Inlet: 1/2" Female• Outlet: 1/2" Female• General Part #: YG1732• Weight: 45.15 oz
Comet 1/2" FPT High Pressure Ball Valve 7,250 PSI
Specifications:• Zinc plated steel body• Chrome plated steel ball• Max Pressure: 7,250 PSI• Max Temperature: 212º F• Inlet: 1/2" Female NPT • Outlet: 1/2" Female NPT• Replaces BV-12FF• Weight: 1.25 lbs
