Picture of PA VB 85/310 (Blue) and YUB21405 Adjustable Unloader 4,500 PSI

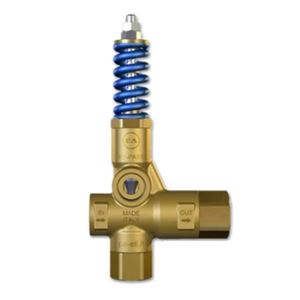

PA VB 85/310 (Blue) and YUB21405 Adjustable Unloader 4,500 PSI

SKU: 60.0423.65

Brand: P.A. Srl

$103.04

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


PA VB 85/310 Rv and General YUB21405 blue spring trapped pressure unloader valve. At gun closure, the waterflow is discharged in bypass reducing the pressure in the system upstream of the valve


Featuring:
• Dynamic seals made up of O-ring and Back-up ring
• Optimized internal passages that guarantee reduced pressure loss
• Anti-rotation device of the piston positioned inside the valve and obtained by an hexagonal sector of the piston itself
• O-rings of the fittings positioned upstream to the thread : no risk of fittings ejected in case of overpressure
• Double feed connection
• Suitable for recycled water and strong detergents

Data Sheet


Specifications:
• Spring Color: Blue
• Permissible Pressure: 4,500 PSI
• Rated Pressure: 4,050 PSI
• Rated Flow Rate: 21.0 GPM
• Rated Temperature: 195° F
• Inlet Ports (2): 1/2" NPT F
• Outlet Port: 1/2” NPT F
• Bypass Port: 1/2” NPT F
• Replaces: 60.0485.65, VB 85/280, 60.0400.65, VB 80/280 and YUB2140
• Weight: 40.63 Oz

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
