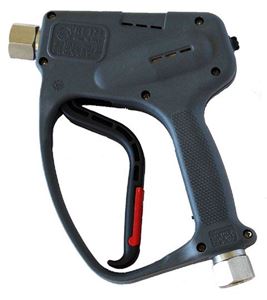

PA RL124 Heavy Duty High Volume Spray Gun 1,950 PSI 32 GPM
Features• Covered by shockproof plastic semi-housings• Seat and ball in Sst• Entirely built of Sst and body in brass• Ergonomic construction• Minimum fatigue for trigger opening• Minimum load loss (see chart)• No fluid passage upon trigger release
Specifications • Rated Pressure: 1,750 PSI• Permissible Pressure: 1,950 PSI • Max Flow: 32.0 GPM• Rated Temp: 210° F.• Inlet: 1/2" Female• Outlet: 1/2" Female• General Part #: YG1732• Weight: 45.15 oz
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
ProPulse, a Schieffer Company, backed by more than 90 years of innovation
Features: • Assembled in USA with high quality components • Suitable for hot water commercial pressure cleaning applications• Rubber construction throughout• Reinforcement: Two layers of high tensile braided steel – R2 Rating• Cover: Wrapped finish with embossed lay line• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 1/2" ID• Length: 50’• Working (Maximum): Up to 3,987 PSI• Burst (Minimum): 11,961 PSI• Color: Black• Maximum Temperature: 212° F.• Ends: 1/2" MPT (1 solid & 1 swivel)• Black bend restrictors on both ends• Weight 22.30 lbs
Spraying Systems 1/4" WashJet® 15º MEG Spray Nozzle
Features• High impact flat fan spray pattern with uniform distribution• Medium-sized drops• Quick visual reference for spray alignment with milled side flats• Longer wear life and flow control accuracy with especially hardened stainless steel construction
Specifications• Nozzle Size: 20.0• Spray Angle: 15º• Max Pressure: 3,000 PSI • Inlet: 1/4" Male NPT• Weight: 0.75 Oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Accutek® S1003-DB Steel Female Hex Coupling 1/2 Female Pipe x 1/4 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 12,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.28 lbs
