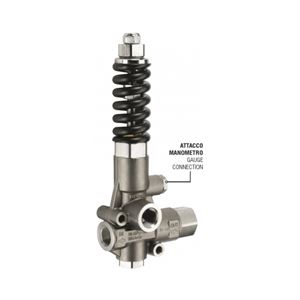

Picture of VHP70 Stainless Steel Adjustable Unloader 10,150 PSI

VHP70 Stainless Steel Adjustable Unloader 10,150 PSI

SKU: 4072201003

Brand: Mecline

$669.56

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Mecline VHP70-700 Stainless Steel AISI 303 Unloader Valve 10,150 PSI. With working pressures up to 9,280 PSI and flows up to 21.0 GPM


Featuring:
• Positioning of all O-Ring seals before the threads, for greater mechanical strength
• New shutter axially guided, for greater stability at high flow rates
• Stainless Steel seat and shutter of new shape, designed by fluid dynamics study to eliminateinstabilities and turbulences with great benefit in terms of long life.
• Stem with new internal anti-rotation system, for greater life
• Stem O-Ring seal Ø 3,53 (0.14”) is placed fixed on the connecting stem guide to allow the stroke of the Stainless Steel stem on O-Ring, increasing the life
• Maximum pressure safety lock.
• Minimum and Maximum pressure regulation lock


Specifications:
• Spring Color: Black
• Rated Pressure: 9,280 PSI
• Permissible Pressure: 10,150 PSI
• Rated Temperature: 194° F
• Rated Flow Rate: 21.0 GPM
• Material: All metallic parts are in stainless steel AISI 303
• Inlet Port: 1/2" F NPT
• Outlet Port: 1/2” F NPT
• Bypass Port: 1/2” F NPT
• Gauge Port: 1/4" F NPT
• Weight: 75.84 Oz



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of Mecline Shoulder Support for ML Trigger Gun

Mecline Shoulder Support for ML Trigger Gun

SKU: 4132300000


Mecline Shoulder Support for ML 210, ML 510, ML 710 ML210, ML510 & ML710 Trigger Guns


Specifications
• Inlet: 1/4" Male
• Size: 13" L x 5.5” W
• Weight: 9.0 oz



  Price: $25.65
Picture of Mecline ML 710 High Pressure Trigger Gun 10,150 PSI 16 GPM

Mecline ML 710 High Pressure Trigger Gun 10,150 PSI 16 GPM

SKU: 4013400000


Mecline ML 710 High Pressure Trigger Gun. This 9,280 PSI rated trigger gun comes with 3/8 F inlet x 3/8 F outlet


Specifications
• Permissible Pressure: 10,150 PSI
• Rated Pressure: 9,280 PSI
• Rated Flow Rate: 16.0 GPM
• Rated Temperature: 250° F
• Inlet: 3/8" Female
• Outlet: 3/8" Female
• Weight: 30.0 oz



  Price: $321.52
Picture of Mecline L70 48" Stainless Steel Vented Lance 3/8" 10,150 PSI

Mecline L70 48" Stainless Steel Vented Lance 3/8" 10,150 PSI

SKU: 4030500005


Mecline L70 48” High Pressure Stainless Steel 3/8” Lance with Handle. This 9,280 PSI rated stainless steel lance comes with a vented grip and 1/4 F NPT outlet


Specifications
• Length: 48.0”
• Permissible Pressure: 10,150 PSI
• Rated Pressure: 9,280 PSI
• Rated Flow Rate: 16.0 GPM
• Rated Temperature: 320° F
• Inlet: 3/8" Male
• Outlet: 1/4" Female NPT (nozzle holder)
• Weight: 64.0 oz



  Price: $141.59
Picture of #8.0 PA UR60 / GP YR87K 8,700 PSI Sst. Rotating Nozzle

#8.0 PA UR60 / GP YR87K 8,700 PSI Sst. Rotating Nozzle

SKU: 25.1460.80


#8.0 PA UR60 / GP YR87K Industrial Duty Rotating Nozzle. This Sst. rotating nozzle with Tungsten Carbide Nozzle & Seat is rated up to 8,700 PSI.


Features
• Offers 0° Impact, but with a 20° pattern
• Heavy-duty, rotating nozzle
• Ideal for blasting applications


Specifications
• Nozzle Size #8.0
• Max PSI: 8,700
• Min PSI: 2,600
• Max Flow Rate: 11.8 GPM
• Min Flow Rate: 1.6 GPM
• Max Temp.: 195° F
• Min Temp.: 41° F
• Inlet Port: 1/4” BSP-F
• Dimensions: 1.65” x 3.82”
• Materials: Stainless Steel, Seat and nozzle in tungsten carbide
• Weight: 19 oz


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $406.00
