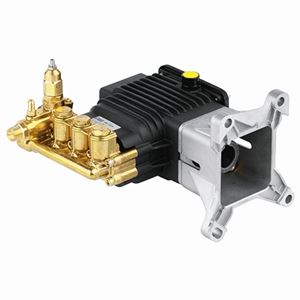

Picture of 4000PSI, 4.0GPM AR Direct Drive Pump with Unloader & Easy Start

4000PSI, 4.0GPM AR Direct Drive Pump with Unloader & Easy Start

SKU: RSV4G40HDF40EZ

Brand: Annovi Reverberi - AR North America

$335.15

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


This Annovi Reverberi / AR North America RSV4G40HDF40EZ / RSV4G40HD-F40EZseries pumps are designed to direct drive on gasoline engines ranging from 5 – 13 h.p. Intended use for medium to heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 500 hours at maximum performance of 4 gpm at 4,000 psi. The RSV is a result of our combined 60 years of pumps building experience and expertise


Features
• Triplex pump with Easy Start is smooth starting
• Features a compact and efficient intergraded unloader valve and fixed chemical injector
• Thermal relief valve included at no cost
• Built In easy start valve
• Forged brass head & valve covers
• Ceramic coated stainless steel plungers
• Direct drive with 4 bolt gas mounting flange


Specifications
• AR number on pump head RSV 4G40B
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 1” Hollow
• Max. Horsepower Requirements: 13.75 GHP
• Max. Fluid Temp.: 140° F.
• Inlet Port: 3/8" FPT
• Outlet Port: 3/8" Male NPT
• Oil capacity: 16 oz
• Replaces RSV4G40B
• Weight: 14.0 lb.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
