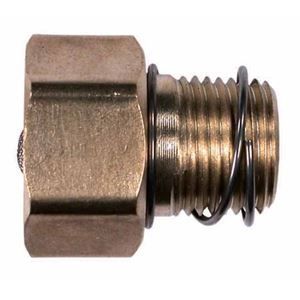

3/8" Male Garden Hose Inlet Connector for Pressure Washer Pump
Specifications • Material: Brass• Inlet: 3/4" Female GH• Outlet: 3/8" MPT
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
• Inlet Washer with Cone Filter 304SS 50/60 Mesh• For 3/4 FGH garden hose inlet connectors• Replaces AR7369
This Annovi Reverberi / AR North America RSV4G40HDF40EZ / RSV4G40HD-F40EZseries pumps are designed to direct drive on gasoline engines ranging from 5 – 13 h.p. Intended use for medium to heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 500 hours at maximum performance of 4 gpm at 4,000 psi. The RSV is a result of our combined 60 years of pumps building experience and expertise
Features• Triplex pump with Easy Start is smooth starting• Features a compact and efficient intergraded unloader valve and fixed chemical injector• Thermal relief valve included at no cost• Built In easy start valve• Forged brass head & valve covers • Ceramic coated stainless steel plungers • Direct drive with 4 bolt gas mounting flange
Specifications • AR number on pump head RSV 4G40B • Max. Volume: 4.0 GPM• Max. Discharge Pressure: 4,000 PSI • Max. Pump Speed: 3,400 RPM• Shaft Diameter: 1” Hollow• Max. Horsepower Requirements: 13.75 GHP • Max. Fluid Temp.: 140° F. • Inlet Port: 3/8" FPT• Outlet Port: 3/8" Male NPT • Oil capacity: 16 oz• Replaces RSV4G40B• Weight: 14.0 lb.
Specifications: • Special blend, 30W viscosity, non-detergent crank case lubricating oil• Exceeds wear prevention requirements of all major hydraulic pump mfg's• Contains anti-wear, rust inhibitor and deoxidizer additives• Packaged in 16 oz bottles• NOT FOR USE IN CAT PUMPS or AXIAL PUMPS • Weight: 1.0 Lbs.
General Pump 15° (Yellow) #3.5 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 15° (Yellow)• Nozzle Size: 3.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
