General EPHT18132S Triplex EPHT Series 1,750 RPM Solid Shaft Plunger Pump with High-temp Seals.

Features:
• Features patented “high tech” packings:
    • Dynamic low-pressure seal retainer
    • Superior low-pressure seal
    • Innovative intermediate ring
    • Superior high-pressure seal
• Nickel-plated manifold
• New forged brass manifold , increases working pressure to 4,000 PSI
• New plunger guide bushing (patent pending)
• Solid ceramic plungers with dual guide system
• New dual diameter plunger guide
• New optimized outlet valves
• New dual lip oil seal

Specifications Sheet

WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

Specifications:
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 3.4 GPM
• Max. Discharge Pressure: 2,465 PSI
• Horsepower: 5.7 EBHP
• Max. Pump Speed: 1,750 RPM
• Oil Capacity: 14 oz
• Max. Fluid Temp.: 185 degrees F.
• Inlet Port Thread: 1/2”-14 BSP-F
• Discharge Port Thread: 3/8”-19 BSP-F
• Shaft Diameter: .945 in./24 mm
• Dimensions – Nominal: 9.5” x 8.38” x 5.1”
• Rail kit part # ZFEETEVO (Not Included)
• Replaces HTXS1813S

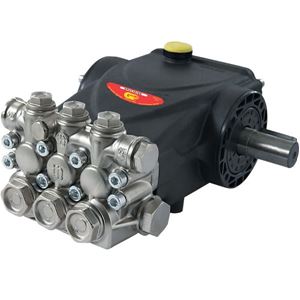

• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Weight: 18.0 lb.
