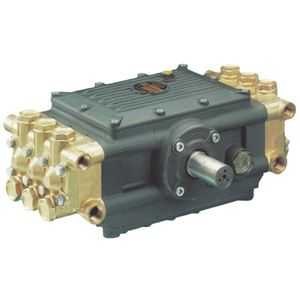

General T1631 Sixplex Plunger Pump.

Features:
• Forged brass manifold with an exclusive lifetime warranty
• Hi flow applications
• Dual manifolds utilizing a common crankcase for efficient performance
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless steel inlet and discharge valves

Specifications Sheet

WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

Specifications:
• Pump: Sixplex Plunger
• Max. Volume: 10.0 GPM
• Max. Discharge Pressure: 2,500 PSI
• Max. Pump Speed: 1,080 RPM
• Shaft Diameter: 32mm Solid
• Max. Horsepower Requirements: 17.1 EBHP
• Max. Fluid Temp.: 165 degrees F.
• Inlet Ports (2): 3/4” BSP-F
• Discharge Ports (2): 3/8” BSP-F
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
• Oil Capacity: 54.0 oz.
• Dimensions: 16.1” x 11.2” x 7.9”
• Weight: 61.0 lb.
