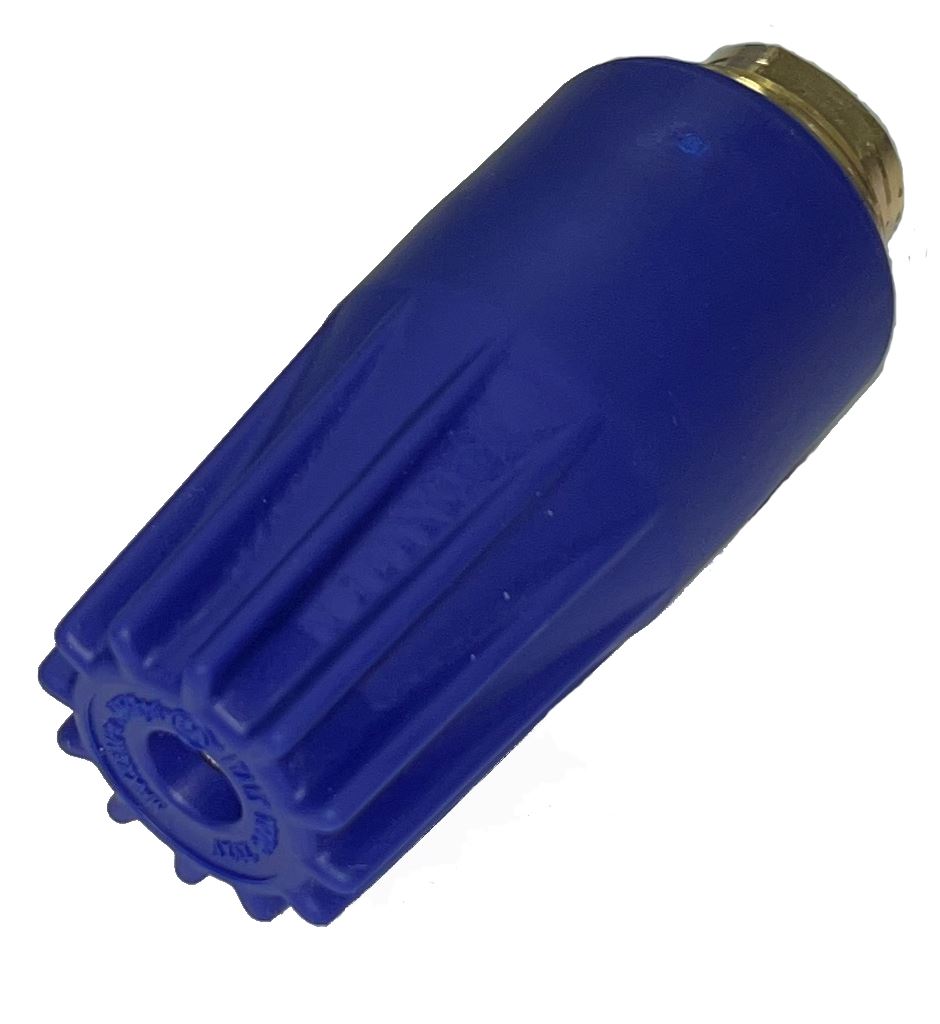

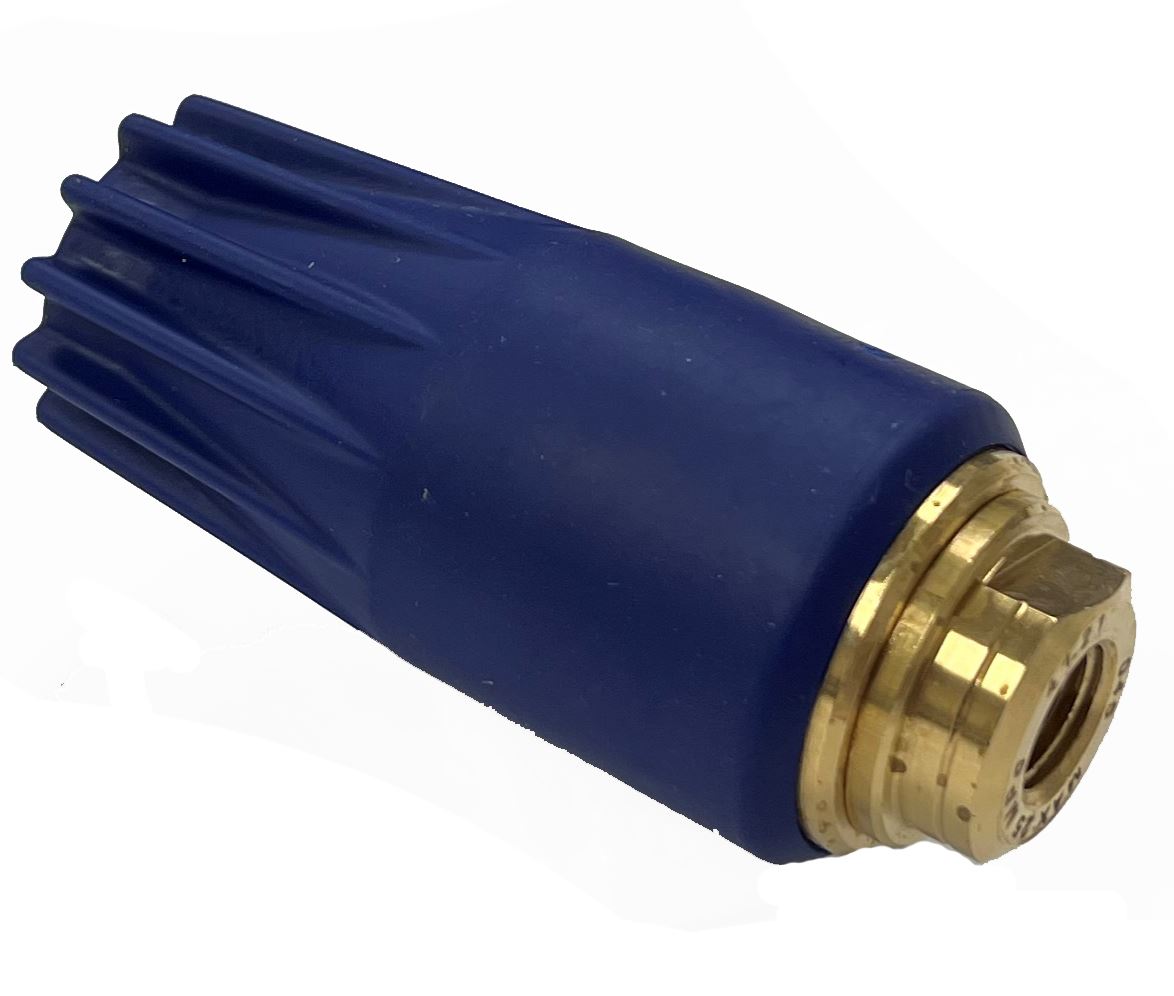

#4.0 Blue PA UR25 / GP YR36K Turbo Nozzle 3,650 PSI is shrouded in a resilient rubber housing protector
Features• Offers 0° Impact, but with a 25° pattern• Unique internal stabilization spring design allows for aim & shoot operation• Nozzle can be pointed in any direction• Shock resistant ceramic• High Strength forged brass housing• Durable rubber cover
Specifications • Nozzle Size #4.0 • Max PSI: 3,650• Max GPM: 7.7• Max Temp.: 212° F• Inlet: 1/4" NPT-F• Minimum for operation: 1.6 GPM at 1,150 PSI • Replaces 25.1620.40• Weight: 0.9 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Specifications: • Compact Design - Shorter overall length• Trip Temperature: 145º F.• Brass body• Inlet thread size: 1/2" MPT• 1/4” Hose barb• Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing• Weight: 1.5 oz
General Pump 40° (White) #4.0 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 40° (White)• Nozzle Size: 4.0• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
General Pump 5,500 PSI High Pressure Inline Filter, 1/4” QD Plug x 1/4” NPT-M. Extend the life of your rotating or variable nozzle with an inlet filter
Features:• 100 Mesh Screen• 303 SS w/Brass Outlet
Specifications:• Max. Pressure: 5,500 PSI• Max. Volume: 8.0 GPM• Screen: 100 Mesh• Maximum Temperature: 200° F • Inlet: 1/4" QD Plug• Outlet: 1/4" NPT-M• Materials: Brass, Stainless Steel, Buna-N• Weight: 0.25 lbs.
Specifications • Nozzle Size #8.0 • Max PSI: 5,100• Max GPM: 9.0• Max Temp.: 212° F• Inlet: 1/4" FPT• Minimum for operation: 2.4 GPM at 2,600 PSI • Weight: 1.0 lbs
