Features
• Increases cleaning efficiency as much as 200%
• The 0° rotation creates a cleaning and tearing action
• Ideal for hard surfaces
• Improved materials for longer life

Specifications
• Nozzle Size # 10.0
• Max PSI: 6,000
• Max Temp.: 212° F
• Inlet: 1/4" Female NPT
• NOTE: All rotating nozzles should be started pointing downward
• Weight: 1.48 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

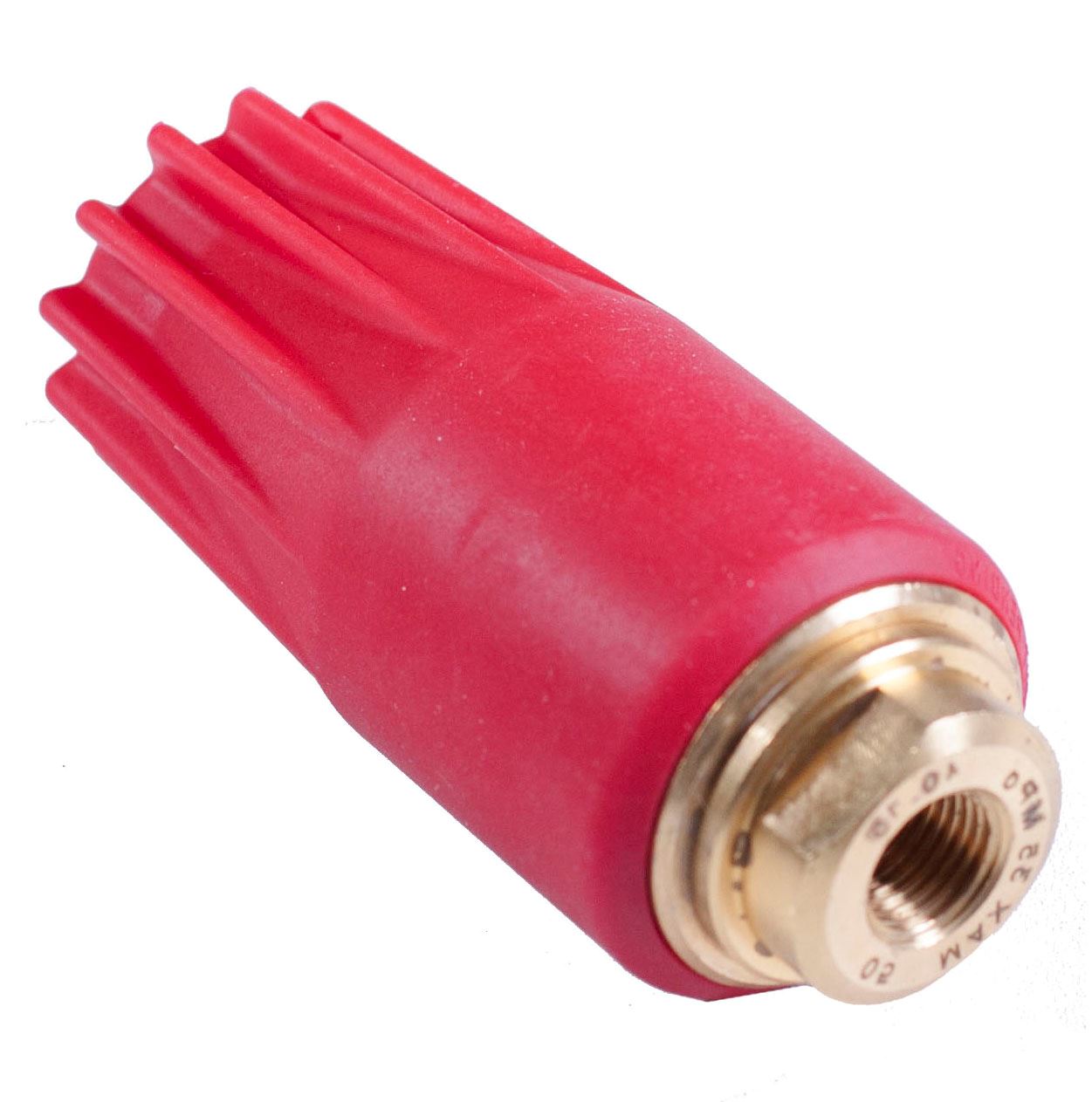

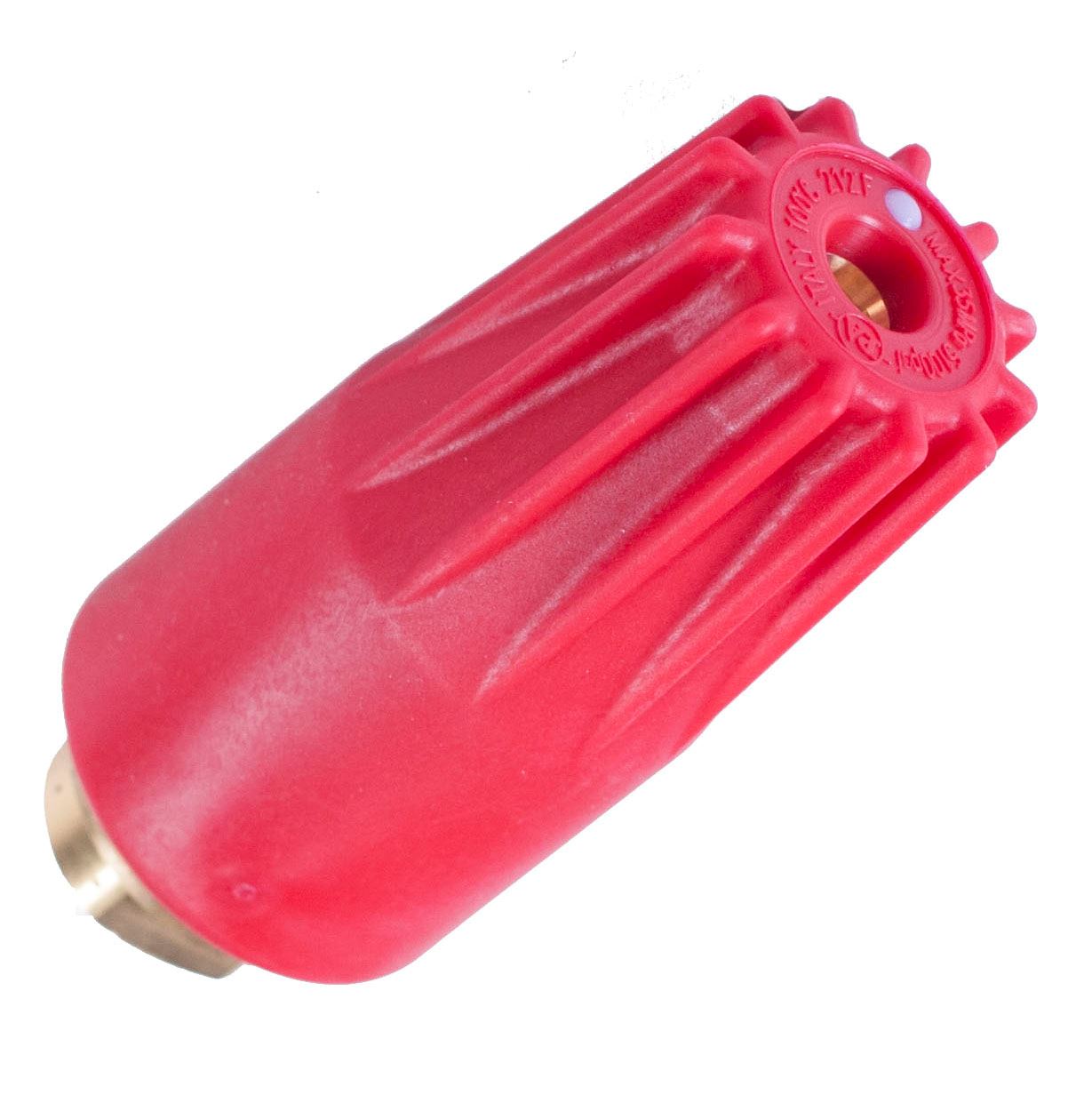

Features
• Offers 0° Impact, but with a 25° pattern
• Unique internal stabilization spring design allows for aim & shoot operation
• Nozzle can be pointed in any direction
• Shock resistant ceramic
• High Strength forged brass housing
• Durable rubber cover

Specifications
• Nozzle Size #6.0
• Max PSI: 5,100
• Max GPM: 9.9
• Max Temp.: 212° F
• Inlet: 1/4" FPT
• Minimum for operation: 2.4 GPM at 2,600 PSI
• Weight: 1.0 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump 40° (White) #6.0 Quick Connect (Q) Spray Nozzle

Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability

Specifications
• Tip Angle: 40° (White)
• Nozzle Size: 6.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer

Features
• 20% injection draw rate
• Made in the USA
• A cost effective solution to your chemical application needs

Injector Specifications:
• Size: # 2.3 mm (5.0 to 8.0 GPM)
• Max Operating Pressure: 4,500 PSI
• Max Temperature: 195° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.30 lbs
