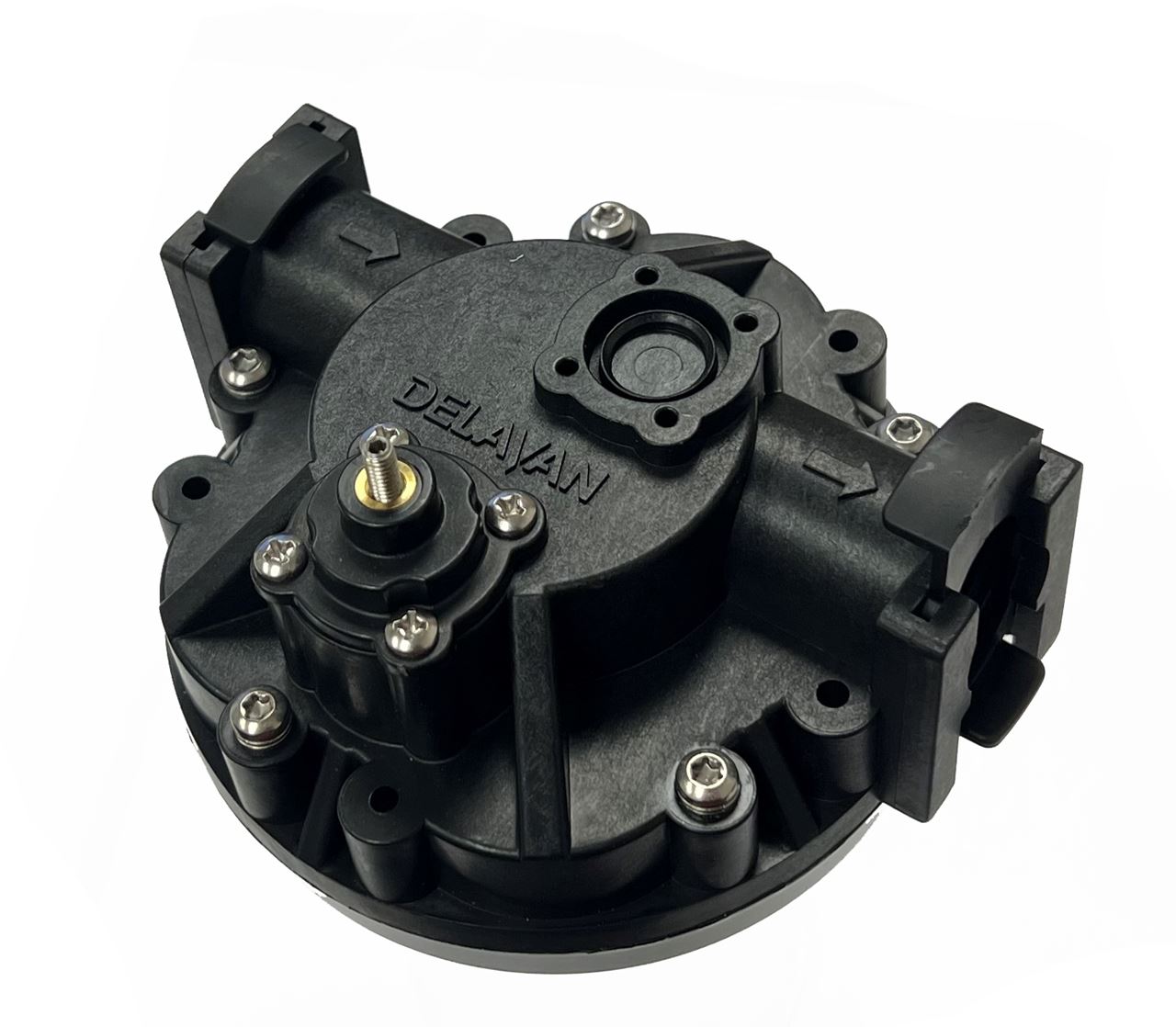

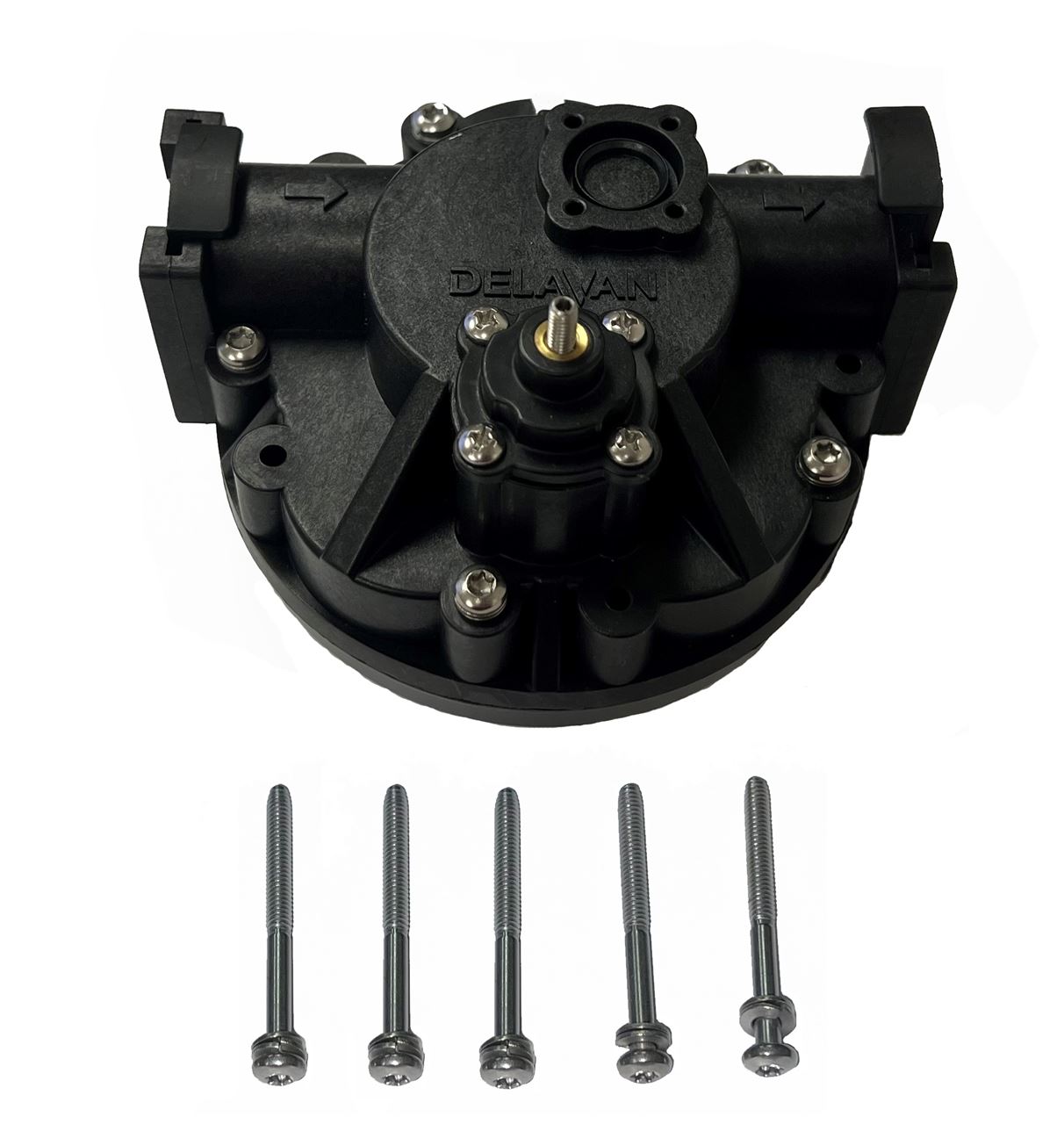

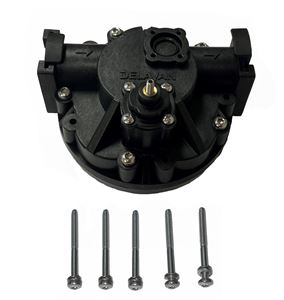

Picture of Delavan Complete Pump Head Assembly, 5950 Series Pumps with Bypass

Delavan Complete Pump Head Assembly, 5950 Series Pumps with Bypass

SKU: PHA-5950-B

Brand: Delavan Fluid Power

$92.08

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


• Delavan Complete Pump Head Assembly
• Works with Delavan 5950 series pumps with bypass valve
• Head assembly with 3/4 quick attach ports

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

Delavan Diaphragm Pump 12V, 60PSI, 5.0GPM, Bypass 3/4" QA

SKU: 5950-111E-SB


Delavan PowerFLO™ 5950 Series 5.0 GPM 60 PSI Diaphragm Pump with & 3/4” Quick Attach Ports. Bypass Design – Continuous operation


Features:
• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 12” long with Delphi Weatherproof Electrical 2 Pin Connector
• Amps: 20 Max
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Fasteners: Stainless Steel


NSF/ANSI Certified:
• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act


Manufacturer Recommendation:
• If you are going to be running continuous use with any bypass model of pump, Delavan also recommends that you purchase a heat sink for the motor


Pump:
• Bypass Design – Continuous operation
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 5.0 GPM
• Max Pressure: 60 PSI
• Pressure Settings: 70 PSI
• Inlet/Outlet Ports: : 3/4” Quick Attach
• Weight: 6.0 lbs

  Price: $140.23
