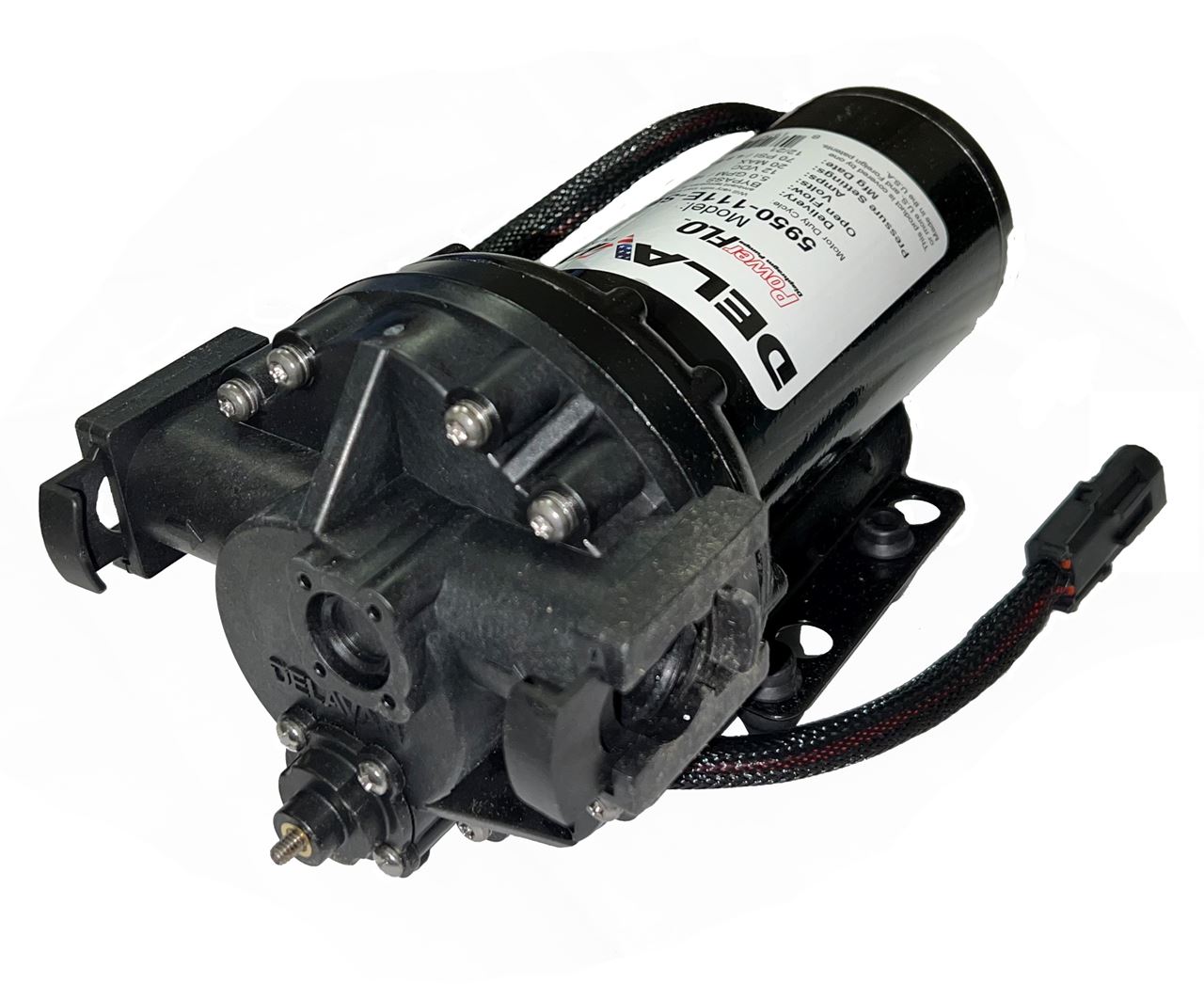

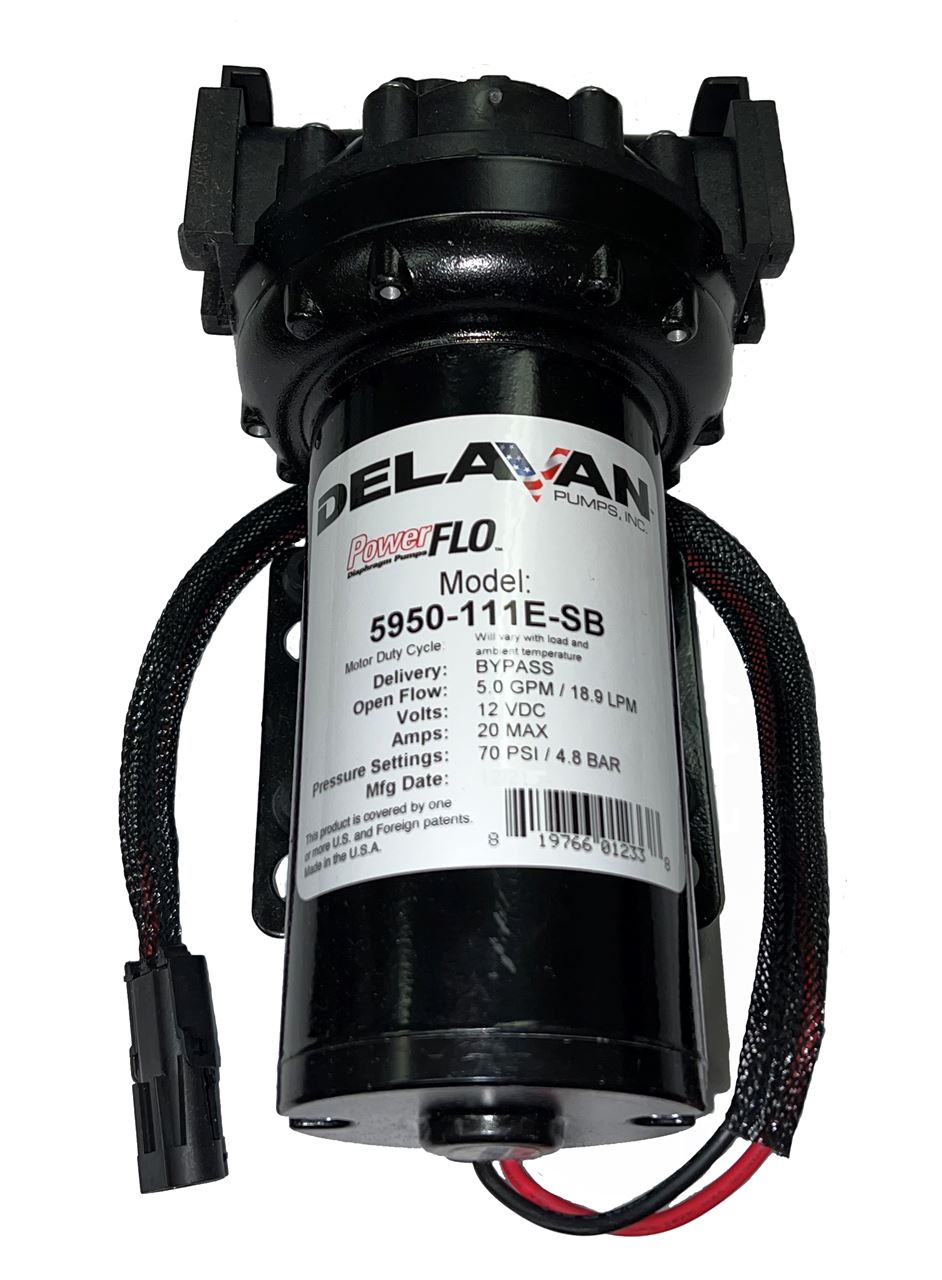

Delavan Diaphragm Pump 12V, 60PSI, 5.0GPM, Bypass 3/4" QA

SKU: 5950-111E-SB

Brand: Delavan Fluid Power

Price: $140.23

QTY:

ADD TO CART

ADD TO WISHLIST

Product Description

Delavan PowerFLO™ 5950 Series 5.0 GPM 60 PSI Diaphragm Pump with & 3/4” Quick Attach Ports. Bypass Design – Continuous operation

Features:
• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase

Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 12” long with Delphi Weatherproof Electrical 2 Pin Connector
• Amps: 20 Max
• Duty Cycle: See Heat Rise graph

Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Fasteners: Stainless Steel

NSF/ANSI Certified:
• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act

Manufacturer Recommendation:
• If you are going to be running continuous use with any bypass model of pump, Delavan also recommends that you purchase a heat sink for the motor

Pump:
• Bypass Design – Continuous operation
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 5.0 GPM
• Max Pressure: 60 PSI
• Pressure Settings: 70 PSI
• Inlet/Outlet Ports: : 3/4” Quick Attach
• Weight: 6.0 lbs

WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
