General Pump D10076 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI

Features:
• Quick disconnect design
• 304 Stainless steel

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP1FSS
• Weight: 0.06 lb

General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer

Features
• 20% injection draw rate
• Made in the USA
• A cost effective solution to your chemical application needs

Injector Specifications:
• Size: # 2.3 mm (5.0 to 8.0 GPM)
• Max Operating Pressure: 4,500 PSI
• Max Temperature: 195° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.30 lbs

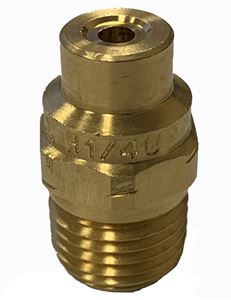

Spraying Systems 0º Brass H-U 1/4" (M) VeeJet® Spray Nozzle. As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray

Features
• Flat fan type, tapered edge spray pattern
• Consistent performance over the industry's largest range of flow rates and pressures
• One-piece design
• Uniform spray distribution with flow rates from .012 to 1237 gpm
• Operating pressures up to 500 psi

TECHNICAL DATA SHEET

Specifications
• Spray Angle: 0º
• Capacity Size: 20
• Operating Pressure: Up to 500 PSI
• Material: Brass
• Inlet Connection: 1/4" Male thread
• Length: 1.0”
• Hex: 9/16”
• Net Weight: 0.8 Oz

General Pump 3/8" 4,000 PSI Quick Disconeect Coupler Fittings (1 Plug & 1 Socket)

Features:
• Working Pressure: 4,000 PSI
• 1 pc: 3/8” NPT-F Brass quick coupler socket
• 1 pc: 3/8” NPT-F Zinc Plated Hardened Steel quick disconnect coupler plug
• Works with standard quick connects
• Weight: 0.30 lb
