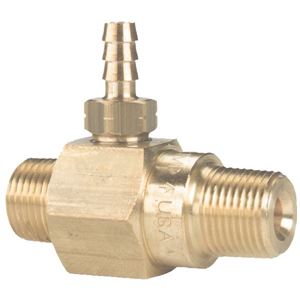

Picture of GP High Draw 20% Fixed Chemical Injector MxM #2.3

GP High Draw 20% Fixed Chemical Injector MxM #2.3

SKU: 100776

Brand: General Pump

$10.38

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer


Features
• 20% injection draw rate
• Made in the USA
• A cost effective solution to your chemical application needs


Injector Specifications:
• Size: # 2.3 mm (5.0 to 8.0 GPM)
• Max Operating Pressure: 4,500 PSI
• Max Temperature: 195° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.30 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
