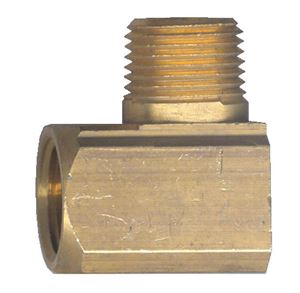

Fairview X115-D 1/2 FPT x 1/2 MPT Extruded Brass 90° Street Elbow. Fairview's Extruded 90° Street Elbow Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas to 1,200 PSI WP
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Use with Brass, Steel, Iron Pipe• Working Pressure: 1,200 PSI• Burst Pressure: 5,000 PSI• Material: Extruded brass• Pipe threads must be sealed using approved thread sealant• Weight: 0.25 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Accutek® S1003-B Steel Female Hex Coupling 1/4 Female Pipe x 1/4 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 5,000 PSI• Burst Pressure: 20,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.08 lbs
• Inlet Washer with Cone Filter 304SS 50/60 Mesh• For 3/4 FGH garden hose inlet connectors• Replaces AR7369
Valley Industries SHC-F Snapper Hose Clamp, Double Tooth
Specifications:• Size: F• Min. Clamp Dia.: 0.616”• Max. Clamp Dia.: 0.707”
