Picture of 1/4 FPT x 1/4 FPT Hex Coupling Steel

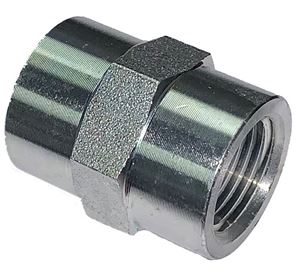

1/4 FPT x 1/4 FPT Hex Coupling Steel

SKU: S1003-B

Brand: Fairview USA Inc.

$2.18

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Accutek® S1003-B Steel Female Hex Coupling 1/4 FPT x 1/4 FPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 5,000 PSI
• Burst Pressure: 20,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.08 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of Inlet Washer with Cone Filter 304 SS 50/60 Mesh

Inlet Washer with Cone Filter 304 SS 50/60 Mesh

SKU: 10373


• Inlet Washer with Cone Filter 304SS 50/60 Mesh
• For 3/4 FGH garden hose inlet connectors
• Replaces AR7369

  Price: $0.28
Picture of QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D11008


General Pump D11008 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2FS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $0.99
Picture of QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-M 4,000 PSI

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-M 4,000 PSI

SKU: D11009


General Pump D11009 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-M 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2MS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $1.06
Picture of QD Socket, Brass 3/8 x 3/8 NPT-M 4,000 PSI

QD Socket, Brass 3/8 x 3/8 NPT-M 4,000 PSI

SKU: D10004


General Pump D10004 Quick Disconnect Coupler Socket Brass 3/8” x 3/8" NPT-M 4,000 PSI


Features:
• Quick disconnect design
• Brass
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCS2MB
• Weight: 0.22 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $3.62
