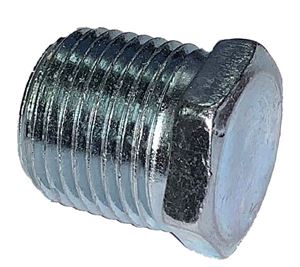

Accutek® S1021-A Steel Hex Head Plug 1/8 MPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Applications - Water, Oil, Air • Working Pressure: 5,000 PSI• Burst Pressure: 20,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.02 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer
Features• 20% injection draw rate• Made in the USA• A cost effective solution to your chemical application needs
Injector Specifications:• Size: # 2.3 mm (5.0 to 8.0 GPM)• Max Operating Pressure: 4,500 PSI• Max Temperature: 195° F• Inlet: 3/8” NPT-M• Outlet: 3/8” NPT-M • Chemical Port: 1/4” Hose Barb• Materials: Brass, Stainless Steel, Viton • Note: If between sizes, choose the smaller injector size• Weight: 0.30 lbs
Accutek® S1021-C Steel Hex Head Plug 3/8 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.07 lbs
Accutek® S1021-B Steel Hex Head Plug 1/4 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 5,000 PSI• Burst Pressure: 20,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.03 lbs
General Pump 25° x #3.0 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 25°• Nozzle Size: 3.0• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
