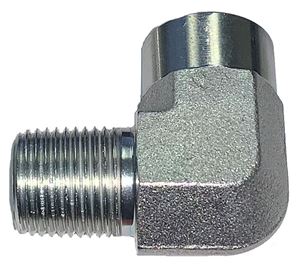

Accutek® S1016-CB Steel 90° Street Elbow 3/8 Male Pipe x 1/4 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 4,000 PSI
• Burst Pressure: 16,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.23 lbs

General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer

Features
• 20% injection draw rate
• Made in the USA
• A cost effective solution to your chemical application needs

Injector Specifications:
• Size: # 2.3 mm (5.0 to 8.0 GPM)
• Max Operating Pressure: 4,500 PSI
• Max Temperature: 195° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.30 lbs

General Pump D10079 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-M 6,000 PSI

Features:
• Quick disconnect design
• 304 Stainless steel

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP2MSS
• Weight: 0.11 lb

General Pump D10002 Quick Disconnect Coupler Socket Brass 1/4” x 1/4" NPT-M 5,000 PSI

Features:
• Quick disconnect design
• Brass
• EPDM O-Ring

Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 1/4"
• Thread: 1/4” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCS1MB
• Weight: 0.17 lb
