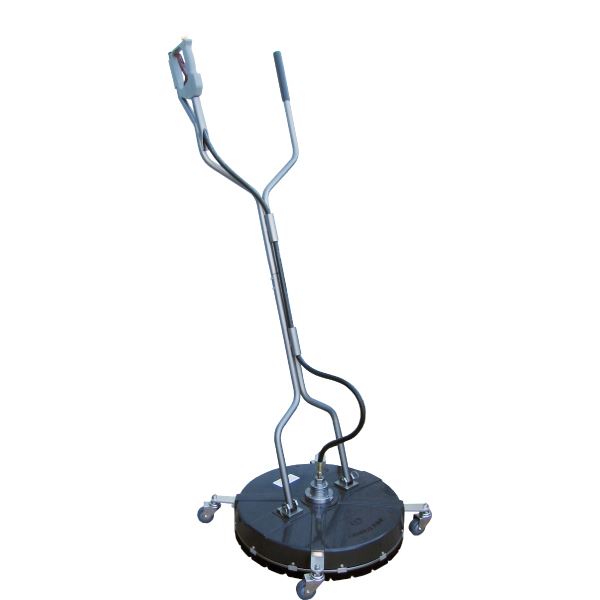

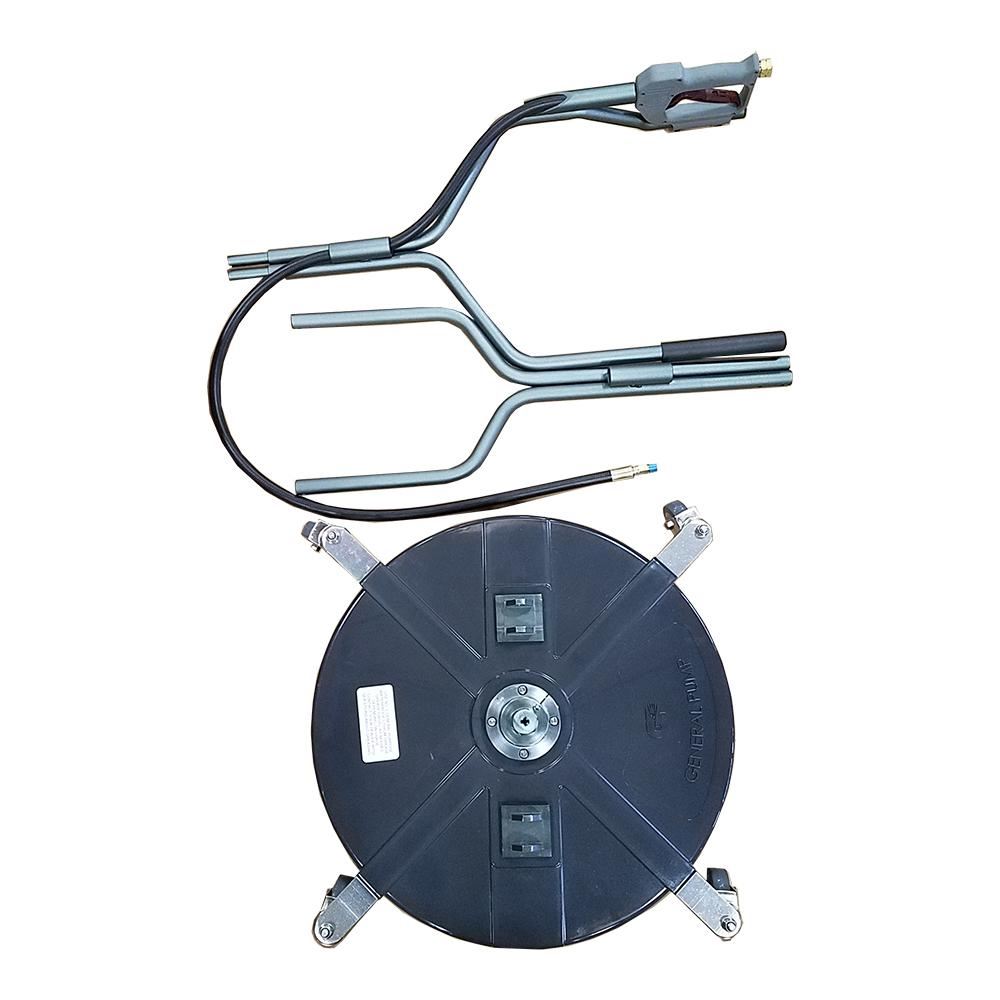

General Pump DCFSCP24GZ 24" Hammerhead Professional Flat Surface Cleaner with Casters. The gun has a revolutionary compensating design to reduce fatigue. The cleaner glides easily across the surface uniformly cleaning pool decks, sidewalks, garage floors and more
FEATURES• Compensating gun feature• Full 24” cleaning path• Heavy-duty anodized aluminum components• Rugged ABS cover• Swivel has grease zerk fitting for bearing lubrication• Two Stainless Steel bearings for better performance• Stainless Steel inlet filter for water filtration• Supplied with 3-nozzle rotating arm• 4 Casters
SPECIFICATIONS• Max Flow: 8 GPM• Operating Pressure: 1,000 – 4,000 PSI• Max. Temp.: 180° F • Nozzles: 925020M (3)• Trigger Gun Inlet: 3/8" NPT-F• Optimal performance if used with a 3 GPM or more pressure washer• Dimensions-Retracted 70” x 25” x 25”• Shipping Weight 26 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D10078 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP2FSS• Weight: 0.09 lb
Spraying Systems 1/4" WashJet® 40º MEG Spray Nozzle
Features• High impact flat fan spray pattern with uniform distribution• Medium-sized drops• Quick visual reference for spray alignment with milled side flats• Longer wear life and flow control accuracy with especially hardened stainless steel construction
Specifications• Nozzle Size: 40.0• Spray Angle: 40º• Max Pressure: 3,000 PSI • Inlet: 1/4" Male NPT• Weight: 0.75 Oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Spraying Systems 1/4" WashJet® 25º MEG Spray Nozzle
Specifications• Nozzle Size: 40.0• Spray Angle: 25º• Max Pressure: 3,000 PSI • Inlet: 1/4" Male NPT• Weight: 0.75 Oz
General Pump 25° x #3.5 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 25°• Nozzle Size: 3.5• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
