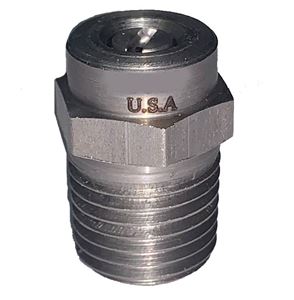

General Pump 25° x #4.0 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 25°
• Nozzle Size: 4.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump 25° x #3.0 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 25°
• Nozzle Size: 3.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

• Inlet Washer with Cone Filter 304SS 50/60 Mesh
• For 3/4 FGH garden hose inlet connectors
• Replaces AR7369

New Design Features:
• Interior Design – more efficient flow and operation
• Dual Locking Nuts – vibration resistant for setting maximum pressures
• New Spring Material – more resistant to fatigue, powder paint resists rusting
• Piston – large diameter, more strength and contact area for shifting alignment
• Discharge Nipple – sealing o-ring has been moved to the lower part of the thread, increases hydro strength and fitting strength
• Shutter Valve – hex design, less contact area for smooth shifting (prevents binding). larger size, longer life and more positive shifting

Featuring:
• Built-In easy start valve relieves back pressure during engine start up
• Over sized handle – easier adjustment
• Forged valve body – excellent strength
• Two inlet ports
• Two by-pass ports
• Ultra thick inlet and discharge ports - added strength
• Color coded springs and caps – easy valve identification
• All ports are FNPT

Specifications:
• Spring Color: Black:
• Replaces AL606EZ, AL606XEZ, AL607EZ & AL607XEZ
• Maximum Pressure: 4,495 PSI
• Max. Volume: 8.0 GPM
• Adjustable pressure
• Brass valve body
• Max. Fluid Temp.: 194° F.
• Inlet Port (1): 3/8" FNPT
• Discharge Port (1): 3/8” FNPT
• Bypass Ports (2): 3/8” FNPT
• Weight: 29.6 oz
