Spraying Systems 0º Brass H-U 1/4" (M) VeeJet® Spray Nozzle. As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray

Features
• Flat fan type, tapered edge spray pattern
• Consistent performance over the industry's largest range of flow rates and pressures
• One-piece design
• Uniform spray distribution with flow rates from .012 to 1237 gpm
• Operating pressures up to 500 psi

TECHNICAL DATA SHEET

Specifications
• Spray Angle: 0º
• Capacity Size: 40
• Operating Pressure: Up to 500 PSI
• Material: Brass
• Inlet Connection: 1/4" Male thread
• Length: 1.0”
• Hex: 9/16”
• Net Weight: 0.8 Oz

General Pump 3/8" 4,000 PSI Quick Disconeect Coupler Fittings (1 Plug & 1 Socket)

Features:
• Working Pressure: 4,000 PSI
• 1 pc: 3/8” NPT-F Brass quick coupler socket
• 1 pc: 3/8” NPT-F Zinc Plated Hardened Steel quick disconnect coupler plug
• Works with standard quick connects
• Weight: 0.30 lb

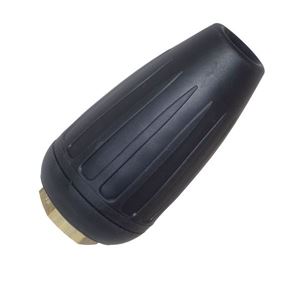

Mecline Rotojet 400 #12 Rotating Turbo Nozzle 5,800 PSI

Features:
• Offers 0° Impact, but with a 25° pattern
• High Strength forged brass
• Durable rubber/plastic cover
• Precision ceramic orifice and matching race

Specifications:
• Max Pressure: 5,800 PSI
• Nozzle Size #12
• Max. Temperature: 200° F
• 1/4" FPT inlet
• NOTE: All rotating nozzles should be started pointing downward
• Weight: 1.65 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump 65° #40.0 Q-Style Brass Soap (Black) Nozzle. General Pump offers a complete range of chemical nozzles. These nozzles have been designed and manufactured with the same exacting standards as the high pressure tips

Features
• Made in the USA
• Brass body
• Large color coded tip protector on Q-type nozzles permits rapid identification

Specifications
• Tip Angle: 65°
• Nozzle Size: 40.0
• Color Code: Black
• Style: Q
• Connection: 1/4” QC Plug
• Weight: 0.05 oz
