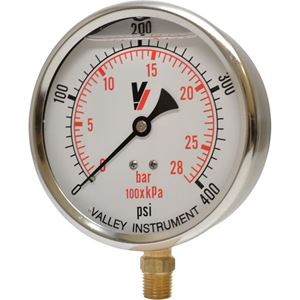

Picture of 400 PSI Bottom Mount 4" SS Pressure Gauge

400 PSI Bottom Mount 4" SS Pressure Gauge

SKU: 4140GXB400

Brand: Valley Industries

$33.13

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Valley Industries Series 40 Dual Scale Industrial 400 PSI Bottom Mount 4" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range (PSI): 0 – 400
• Dial Range (BAR): 0 – 28
• Casing: 4" Diameter
• Movement: Brass
• Bourdon Tube: C-Shaped in copper alloy
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Polycarbonate – temperature compensating
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.75 lbs.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
