Picture of 400 PSI Bottom Mount 2-1/2" SS Pressure Gauge

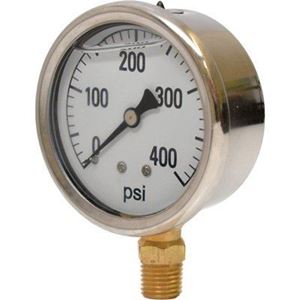

400 PSI Bottom Mount 2-1/2" SS Pressure Gauge

SKU: 2141GXB400

Brand: Valley Industries

$10.45

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Valley Industries Series 41 Single Scale OEM 400 PSI Bottom Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range: 0 – 400 PSI
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: C-Shaped in copper alloy
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• ASME/ANSI B40.1 Grade B (3-2-3%)
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.
