Features
• Forward jet breaks up clogs & debris
• 3 Backward jets drive nozzle forward and flushes and removes debris from sides of line
• Corrosion resistant stainless steel construction

Specifications
• Inlet: 1/8” FPT
• Nozzle Size: # 5.0
• Material: Stainless steel
• Maximum Pressure: 4,200 PSI
• Max. Fluid Temperature: 300º F
• Weight: 0.3 oz.

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Construction:
• Inner Tube: Yellow seamless thermoplastic
• Reinforcement: High tensile double synthetic fiber braids
• Cover: Abrasion resistant polyether-urethane

Features:
• Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions
• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product
• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis
• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption
• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance
• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested

Specifications:
• Service Temp. Range: -40º F to +160º F
• Hose ID: 1/4”
• Assembled Length: 100’
• Male NPT Fittings: 1/4 - 18
• Color: Red
• Max. Working Pressure: 5,000 PSI
• Weight: 6.8 lbs.

1/4” Suttner #5.0 ST-49 Milling Sewer Cleaning Nozzle. With 3 Front and 4 Rear jets and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• With its 3 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• Centric jet is plugged
• 3 Lateral front jets 0.5 mm drilled
• 4 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel rear and centric front jets
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations

Specifications:
• Nozzle Size: # 5.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .95”
• Weight: 2.8 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

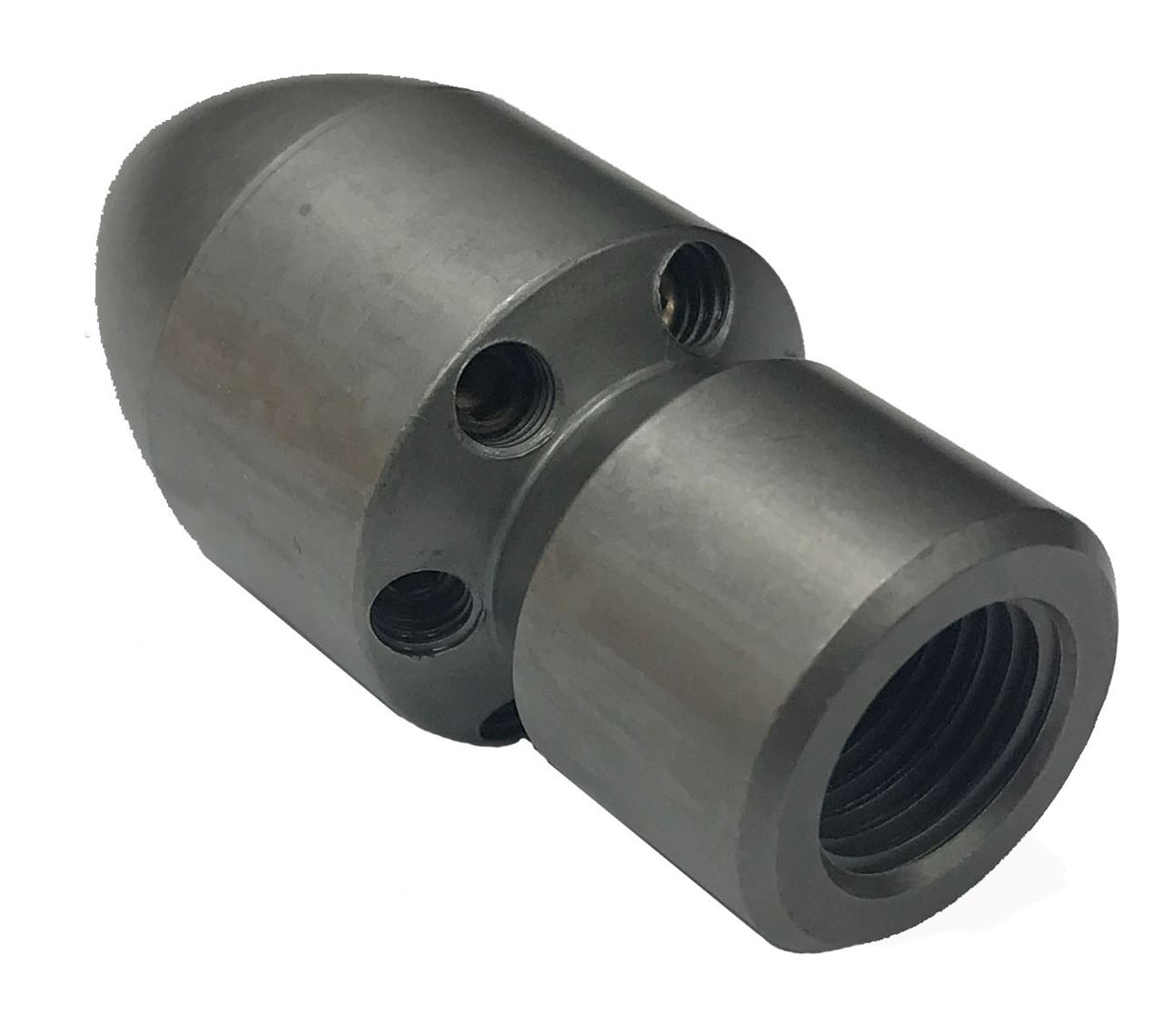

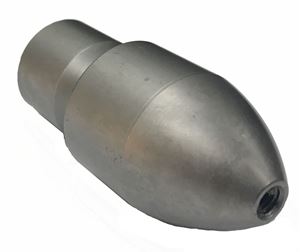

1/4” Suttner #6.0 ST-49 Bullet Sewer Cleaning Nozzle. With 1 Front and 6 Rear jet inserts and rated to 7,252 PSI

Features:
• High Quality, German engineered components
• Made out of wear-resistant, hardened stainless steel
• 1 Front jet with nozzle insert
• 6 Rear jets with nozzle inserts, angle of jet is 30°
• Sturdy wall thickness, long service life and a minimum of wear and tear
• All nozzles are provided with hardened stainless steel inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Suitable for removal of sludge deposits
• Desilting of pipes
• Opening of frozen pipelines

Specifications:
• Nozzle Size: # 6.0
• Material: Stainless steel
• Maximum Pressure: 7,252 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .98”
• Weight: 4.0 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
