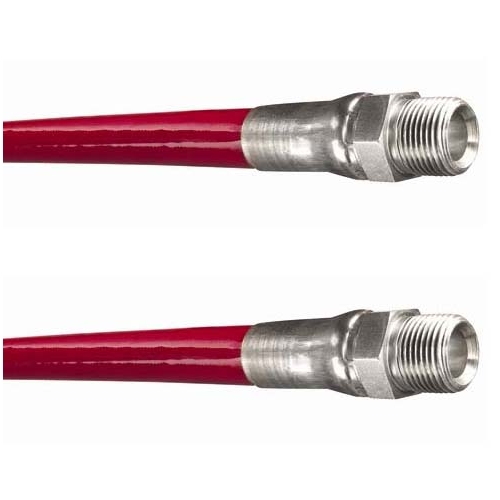

Piranha® LLRD Series 1/4” x 100’ sewer jetter hose assembly with MxM fittings. Piranha® LLRD series hose is used in applications for commercial, industrial and residential sewer cleaning

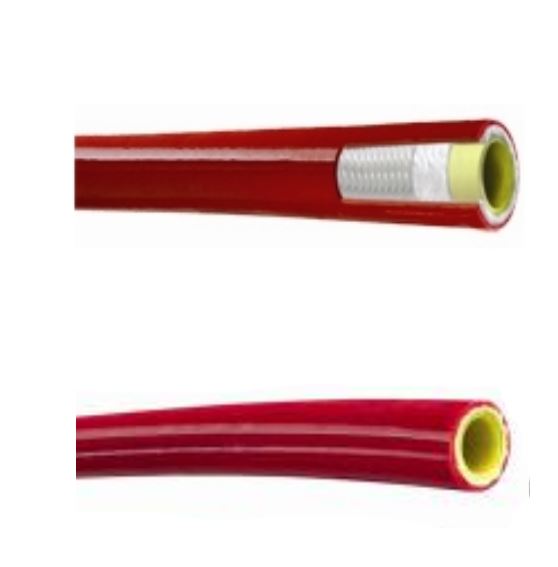

Construction:• Inner Tube: Yellow seamless thermoplastic• Reinforcement: High tensile double synthetic fiber braids• Cover: Abrasion resistant polyether-urethane
Features: • Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 1/4”• Assembled Length: 100’• Male NPT Fittings: 1/4 - 18• Color: Red• Max. Working Pressure: 5,000 PSI • Weight: 6.8 lbs.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Kuriyama Alfagomma® Argus QX 1/4" Female Screw Coupling x 1/4" MNPT 10,000 PSI ISO 14540. Thanks to the exclusive ALFAGOMMA TOP COAT – Galvanic Coating – proprietary technology, the complete range of ARGUS Quick release couplings can boast an extraordinary wear and corrosion resistance, so as to guarantee a longer lifespan to your system
Features:• ARGUS QX high pressure couplings can be used for connecting and disconnecting hydraulic lines• Their robust construction and tested components make them ideally suited for high and intermittent pressure loads• During the coupling action, valves that release and/or block the flow are automatically activated• The QX quick release coupling, formed by coupling plug and coupling socket, is coupled by a screwing action with the hand nut of the plug component
Specifications:• Product Type: Female Coupler with Male Thread• Dash: 04• Inside Diameter: 1/4”• Working Pressure: 10,150 PSI• Burst Pressure: 40,650 PSI • Norm: ISO 14540• Thread: NPTF• Temperature: -22º F - 257º F• End Type: Female• Second End Type: 1/4-18 MNPT• Weight: 0.30 lb
General Pump 3/8" 4,000 PSI Quick Disconeect Coupler Fittings (1 Plug & 1 Socket)
Features: • Working Pressure: 4,000 PSI • 1 pc: 3/8” NPT-F Brass quick coupler socket • 1 pc: 3/8” NPT-F Zinc Plated Hardened Steel quick disconnect coupler plug • Works with standard quick connects• Weight: 0.30 lb
Features• Forward jet breaks up clogs & debris• 3 Backward jets drive nozzle forward and flushes and removes debris from sides of line• Corrosion resistant stainless steel construction
Specifications • Inlet: 1/4” FPT• Nozzle Size: # 4.5• Material: Stainless steel• Maximum Pressure: 4,200 PSI• Max. Fluid Temperature: 300º F• Weight: 0.6 oz.
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
ProPulse, a Schieffer Company, backed by more than 90 years of innovation
MADE IN USAEvery foot of Propulse Jetter Clean is manufactured at our ISO9001:2008 certified factory in the USA using 100% domestically sourced materials
Features:• Suitable for consumer and commercial applications• Reinforcement: One layer of polyester braid• Cover: Thermoplastic smooth finish with printed lay line• Burst (Minimum): 2.5:1 working pressure• Easily slides into sewer lines and pipes• Glossy black abrasion resistant cover
Specifications: • Inner Diameter: 1/8” ID• Length: 50’• Working (Maximum) Pressure: 4,800 PSI• Burst (Minimum): 12,000 PSI • Optimal Recommended Flow Rate: Up to 1.5 GPM• Max. Fluid Temperature: 160º F.• Inlet: 1/8” MPT with 1/4” MPT Bushing (Solid)• Outlet: 1/8” MPT (Solid)• Weight 1.5 lbs
