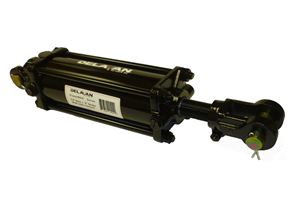

Picture of Delavan PML 3.5" x 8" Hydraulic Tie-Rod Cylinder ASAE Certified

Delavan PML 3.5" x 8" Hydraulic Tie-Rod Cylinder ASAE Certified

SKU: PML3508-125ASAE

Brand: Delavan Fluid Power

$116.50

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan PowerMAX™ PML3508-125ASAE 3.5" x 8" x 1.25" Hydraulic Cylinder. This ASAE Certified Tie-Rod Cylinder has 2,500 PSI Working Pressure and NPT Ports. Delavan PowerMax Hydraulic Cylinders are designed and manufactured to meet the most demanding requirements.


Features:
• Chromed, polished and individually heat-treated shaft provides extended cylinder life
• Built tough enough to stand up to the roughest conditions
• Pins and retainers: high tensile steel, zinc plated to prevent corrosion, comes with cotter pin retainers
• Ports: double ported NPTF for greater flexibility of assembly, unless otherwise stated, cylinders assembled with ports inline
• Piston nut: heavy duty automation grade self locking piston nut holds piston in place under high cycle loading
• Piston: ductile iron, precision machined providing a malleable bearing surface for extended cylinder life
Piston seal: 90 durometer O-ring with anti extrusion back up washers provide sealing under high load conditions
• Tie-rods: high tensile steel to prevent failure under high pressure
• Cylinder shaft: high strength, hard chrome plated shaft provides extended cylinder life in harsh applications
• Tube: precision finished skive and burnished heavy wall steel tubing for extended seal and cylinder life
• Rod seal: Premium Double Lip Polyurethane BS profile using a double lip design for leak-free performance throughout the pressure range and longer life expectancy
• Rod cap and clevis cap: ductile iron comes with drilled oil passages, offering increased bearing surface for high shock and side load applications
• Rod wiper: Polyurethane AN or D Style provides a tough/hard material to remove contaminants from shaft surface
• Threaded shaft: (on ASAE cylinders) to accept optional mechanical stroke control (not applicable to 5 "bore cylinders)
• Rod clevis: ductile iron able to withstand continuous high load without wear or fracture
• All cylinders are 100% hydraulically tested up to 1.5 working pressure


Specifications:
• Bore: 3.5”
• Stroke: 8”
• Rod Diameter: 1.25”
• Working Pressure: 2,500 PSI
• Pin to Pin Center Retracted x Extended: 20-1/4” x 28-1/4”
• Clevis Pin Diameter: 1”
• Port Size: 1/2” FNPT
• Max Rated PSI on Full Extension: Full PSI
• Max Rated Column Load on Full Extension: 24,053 Lbs
• Packaging: Small box
• Warranty: 3 Years from date of purchase
• Weight: 29.25 lbs



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
