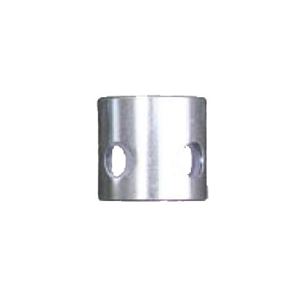

Picture of Mounting Tube, Inner 9/16" Hole, Zinc Plated

Mounting Tube, Inner 9/16" Hole, Zinc Plated

SKU: 64.002.000

Brand: Valley Industries

$4.30

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Valley Industries 64.002.000 Weld On Inner Mounting Tube for VI-700 & VI-720 square tube jacks


Specifications
• Mounting Tube: Inner
• Inside Dia.: 1.49”
• Outside Dia.: 2.01”
• 9/16" pin hole
• Zinc Plated
• Use with # VI-701 Weld On Bracket
• Weight: 0.60 Lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
