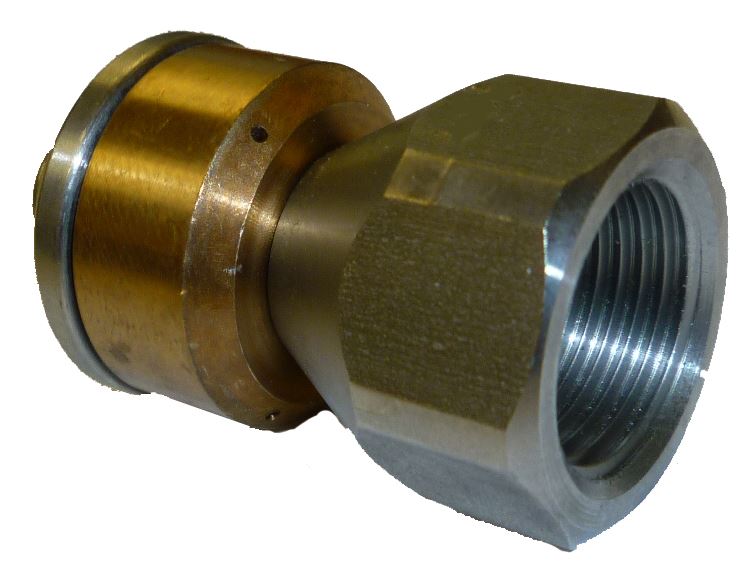

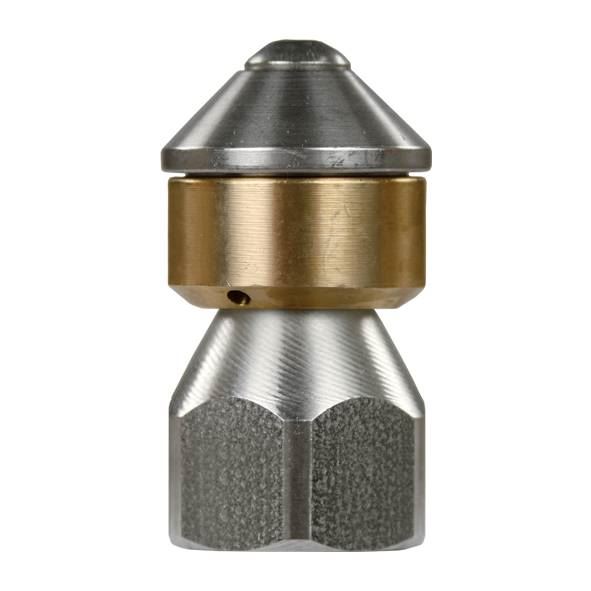

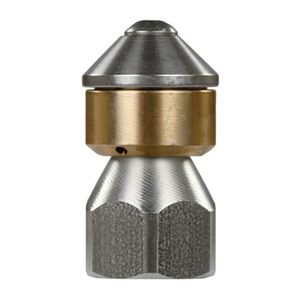

1/4” Suttner # 12.0 ST-49 Ram Sewer Nozzle 0 Front 8 Rear 4,200 PSI.

Features
• High Quality, German engineered components
• 8 Rear jets (30°) for maximum thrust and simultaneously, a flushing away of the waste material
• Stainless steel
• Works best on 2" to 4" Pipes

Specifications
• Nozzle Size: # 12.0
• Material: Stainless steel
• Maximum Pressure: 4,200 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .75”
• Weight: .60 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

3/8” Suttner #15.0 ST-49 Milling Sewer Cleaning Nozzle. With 1 Centric, 3 Front and 6 Rear jets and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• With its 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• 1 Centric front jet with nozzle insert
• 3 Lateral front jets with nozzle inserts
• 6 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel nozzle inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations

Specifications:
• Nozzle Size: # 15.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 3/8” Female
• Outside Diameter (O.D.): 1.11”
• Weight: 4.0 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump 0° x #10.0 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 0°
• Nozzle Size: 10.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Suttner ST-36 Sludge Pump Casting with Hose Barb. Turns a pressure washer into a high output pump. Great for flood cleanup, car wash pits, draining pools or chemical spills

Features
• Water flowing through the high pressure nozzle creates a powerful venturi suction that vacuums up slurry solutions
• Debris as large as 3/4” will pass through the casting and out the discharge hose
• Vacuums up liquid slurries at a ratio of about 1:11 Example: Using 4 GPM will produce an output of 44 GPM
• Hose barb 1 1/2"
• Casting Only: Does not include 0 degree 1/4” MPT nozzle, coupling and hose

Suttner ST-36 Sludge Pump In Action on YouTube

Specifications
• Flow Rate: 11:1
• Max Pressure: 4,000 PSI
• Max Temp: 104° F.
• Inlet: 3/8" FPT
• Nozzle Port: 1/4" FPT
• Weight: 0.80 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
