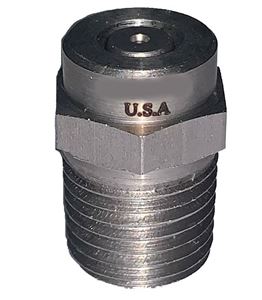

General Pump 15° x #10.0 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 15°
• Nozzle Size: 10.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Suttner ST-36 Sludge Pump Casting with Hose Barb. Turns a pressure washer into a high output pump. Great for flood cleanup, car wash pits, draining pools or chemical spills

Features
• Water flowing through the high pressure nozzle creates a powerful venturi suction that vacuums up slurry solutions
• Debris as large as 3/4” will pass through the casting and out the discharge hose
• Vacuums up liquid slurries at a ratio of about 1:11 Example: Using 4 GPM will produce an output of 44 GPM
• Hose barb 1 1/2"
• Casting Only: Does not include 0 degree 1/4” MPT nozzle, coupling and hose

Suttner ST-36 Sludge Pump In Action on YouTube

Specifications
• Flow Rate: 11:1
• Max Pressure: 4,000 PSI
• Max Temp: 104° F.
• Inlet: 3/8" FPT
• Nozzle Port: 1/4" FPT
• Weight: 0.80 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump D11007 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 1/4” x 1/4" NPT-M 5,000 PSI

Features:
• Quick disconnect design
• Hardened Steel Zinc Plated

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 1/4"
• Thread: 1/4” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCP1MS
• Weight: 0.06 lb

General Pump 40° x #10.0 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 40°
• Nozzle Size: 10.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
