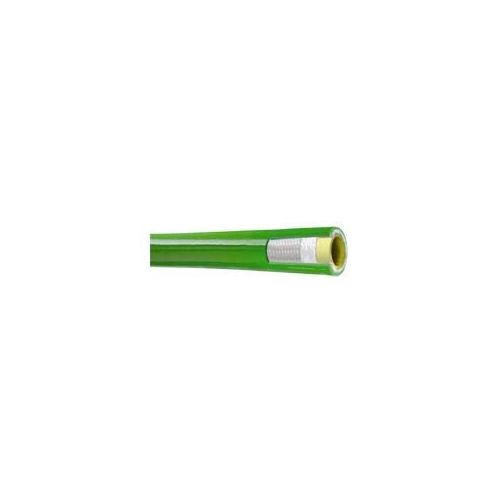

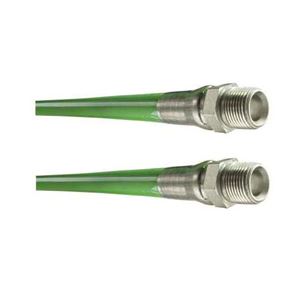

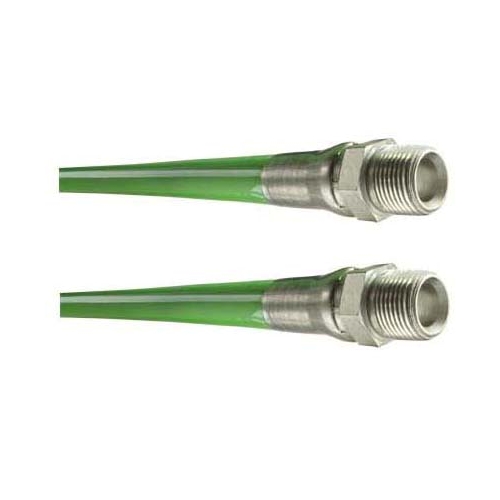

Piranha® LLGR Series 3/8” x 100’ sewer jetter hose assembly with MxM fittings. Piranha® LLGR series hose is used in applications for commercial, industrial and residential sewer cleaning
Construction:• Inner Tube: Yellow seamless thermoplastic• Reinforcement: High tensile double synthetic fiber braids• Cover: Abrasion resistant polyether-urethane
Features: • Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 3/8”• Assembled Length: 100’• Male NPT Fittings: 3/8 - 18• Color: Green• Max. Working Pressure: 4,000 PSI • Weight: 11.0 lbs.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
1/4” Suttner ST-49 “Grease Ball” Sewer Nozzle # 8.0, 8 Rear 7,252 PSI.
Features• High Quality, German engineered components• 8 Rear jets 0.6 mm for extreme thrust and highest wall coverage of the pipe• Designed for the ability to clean grease off the sidewall of pipes but has proven to be great on root chokes, too• Nozzle drilling as stepped bore for best protection against mechanical impact• Hardened stainless steel • Works best on 2" to 4" Pipes
Specifications • Nozzle Size: # 8.0• Material: Stainless steel• Maximum Pressure: 7,252 PSI• Inlet: 1/4” Female• Outside Diameter (O.D.): .97” • Length: .84” • Weight: .08 lb
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Accutek® S1020-CB Steel Adapter 3/8 Female Pipe x 1/4 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.13 lbs
3/8” Suttner # 7.0 ST-49 Ram Sewer Nozzle 0 Front 4 Rear 4,200 PSI.
Features• High Quality, German engineered components• 4 Rear jets (30°) for maximum thrust and simultaneously, a flushing away of the waste material• Stainless steel• Works best on 4" to 8" Pipes
Specifications • Nozzle Size: # 7.0• Material: Stainless steel• Maximum Pressure: 4,200 PSI• Inlet: 3/8” Female• Outside Diameter (O.D.): .92”• Weight: 1.30 oz
Accutek® S1003-B Steel Female Hex Coupling 1/4 Female Pipe x 1/4 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 5,000 PSI• Burst Pressure: 20,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.08 lbs
