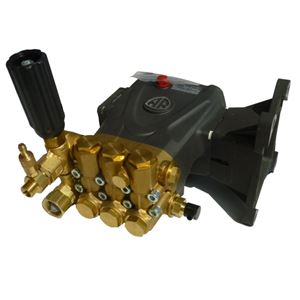

Annovi Reverberi / AR North America RRV 4G40-PKG pump with bolt-on unloader, chemical injector, thermal valve and garden hose inlet connector. RRV D Version with F24 flange series pumps are designed to direct drive on gasoline engines ranging from 8 -13 HP. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RRV is a result of our combined 60 years of pumps building experience and expertise
Features:• Latest in design and technology• New crankcase style• High strength forged brass manifold for long term use• NEW ceramic plungers, thicker wall to help prevent thermal shock• Stainless steel valves• Side mount valve seat o-rings• High quality high pressure seals• NEW low pressure seal with built in scraper• Two piece piston guides• NEW connecting rod with 12% more load surface• Large side cover sight glass• Oversized bearings• Rear cover oil drain• Forged, precision ground crankshaft
Specifications: • Max. Volume: 4.0 GPM• Max. Discharge Pressure: 4,000 PSI • Max. Pump Speed: 3,400 RPM• Shaft Diameter: 1” Hollow• Max. Horsepower Requirements: 14.55 GHP • Max. Fluid Temp.: 140° F.• Oil capacity: 13.35 oz• Unloader Inlet: 3/4" GH (garden hose)• Unloader Outlet: 3/8" Male • Weight: 20.10 lb.
Package Components: • RRV4G40D-F24 pump• VR35 Adjustable unloader with adjustable chemical injector • Thermal relief valve• Garden hose inlet connector with cone filter
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Specifications: • Special blend, 30W viscosity, non-detergent crank case lubricating oil• Exceeds wear prevention requirements of all major hydraulic pump mfg's• Contains anti-wear, rust inhibitor and deoxidizer additives• Packaged in 16 oz bottles• NOT FOR USE IN CAT PUMPS or AXIAL PUMPS • Weight: 1.0 Lbs.
• Inlet Washer with Cone Filter 304SS 50/60 Mesh• For 3/4 FGH garden hose inlet connectors• Replaces AR7369
Specifications: • Works on most 1" solid shaft engines with a 1/4" keyway• 1/4" W x 1-5/16" L • Key may have to be cut to length
General Pump 40° (White) #3.5 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 40° (White)• Nozzle Size: 3.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
