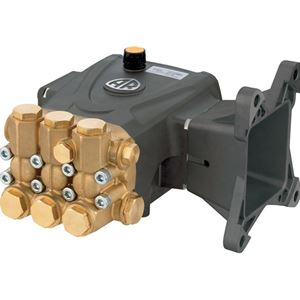

Annovi Reverberi / AR North America RRV 4G40-VRT-PKG pump with VRT3 EZ start unloader, 1/2” bypass hose, thermal valve, 3/8” qc socket, 3/8” qc plug and garden hose inlet connector. RRV D Version with F24 flange series pumps are designed to direct drive on gasoline engines ranging from 8 -13 HP. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RRV is a result of our combined 60 years of pumps building experience and expertise

Features:
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft

Specifications:
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 1” Hollow
• Max. Horsepower Requirements: 14.55 GHP
• Max. Fluid Temp.: 140° F.
• Oil capacity: 13.35 oz
• Unloader Inlet: 3/4" GH (garden hose)
• Unloader Outlet: 3/8" Female
• Weight: 21.10 lb.

Package Components:
• RRV4G40D-F24 pump
• VRT3-310 EZ Start adjustable pressure unloader
• 1/2” Black bypass hose
• Thermal relief valve
• Brass Line Strainer w/ Cone Filter, GH Inlet
• 3/8” QC brass socket
• 3/8” QC steel plug
• Weight: 21.10 lb

General Pump 15° (Yellow) #4.5 Quick Connect (Q) Spray Nozzle

Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability

Specifications
• Tip Angle: 15° (Yellow)
• Nozzle Size: 4.5
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Valley Industries Series 41 Single Scale OEM 5,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration

Features:
• Dial Range: 0 – 5,000 PSI
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• ASME/ANSI B40.1 Grade B (3-2-3%)
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.

PA Pulsar 4 Unloader Valve 4,050 PSI with built-in Easy Start. Built-In easy start valve relieves back pressure during engine start up

Features
• NEW improved design!
• Reduced pressure loss
• Makes for easier gun operation
• Extremely reliable
• Easy maintenance
• Includes knob fitted with locknut for easy pressure adjustment
• Facilitates water discharge in pressure during start-up
• Reduces energy required for start-up

Specifications Sheet

Specifications:
• Rated Pressure: 4,050 PSI
• Permissible Pressure: 4,500 PSI
• Rated Temperature: 195° F
• Rated Flow Rate: 10.5 GPM
• Material: Steel and brass
• Inlet Port (1): 3/8" NPT-F
• Outlet Port (1): 3/8" NPT-F
• Bypass Ports (2): 3/8" NPT-F
• NOTE: Unloader Must Be Installed Vertically For Proper Operation
• Replaces Pulsar 280 #60.0006.90
• GP #: PULSAR4KHPEZ
• Weight: 26.0 oz
