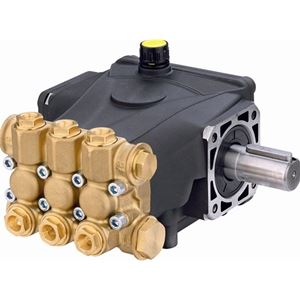

Annovi Reverberi / AR North America RC N Version with 24mm solid shaft series pumps are designed to belt drive or gear drive on gas engines and belt drive or flange coupling on electric motors. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RC is a result of our combined 60 years of pumps building experience and expertise
Features• Latest in design and technology• New crankcase style• High strength forged brass manifold for long term use• NEW ceramic plungers, thicker wall to help prevent thermal shock• Stainless steel valves• Side mount valve seat o-rings• High quality high pressure seals• NEW low pressure seal with built in scraper• Two piece piston guides• NEW connecting rod with 12% more load surface• Large side cover sight glass• Oversized bearings• Rear cover oil drain• Forged, precision ground crankshaft
Specifications • Max. Volume: 3.4 GPM• Max. Discharge Pressure: 2,500 PSI • Max. Pump Speed: 1,450 RPM• Shaft Diameter: 24mm Solid• Max. Horsepower Requirements: 5.8 EBHP • Max. Fluid Temp.: 140° F.• Inlet Ports (2): 1/2" Female• Outlet Ports (2): 3/8" Female• Oil capacity: 9.81 oz• Weight: 10.0 lb.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 40° x #3.0 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 40°• Nozzle Size: 3.0• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
General Pump 40° x #4.5 M-Style Spray Nozzle 1/4” NPT-M
Specifications• Tip Angle: 40°• Nozzle Size: 4.5• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
General Pump 40° x #2.5 M-Style Spray Nozzle 1/4” NPT-M
Specifications• Tip Angle: 40°• Nozzle Size: 2.5• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
