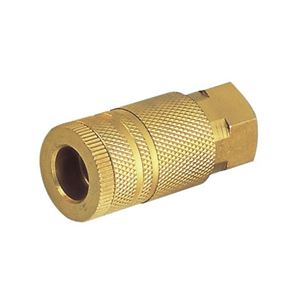

Brass 1/4” Quick Disconnect Coupler Socket with female thread. Quick Disconnect Air / Pneumatic Couplings and Plugs by Kuriyama are brass, semi-automatic and rated to 300 PSI. Kuriyama’s Industrial Interchange Quick Couplers are made to accept pneumatic nipples that conform to A-A-59439 (formerly MIL-C-4109F), ANSI/(NFPA) T3.20.14-1990, or ISO 6150-B requirements
Specifications• Product Type: Quick coupling female coupler• Type: Semi-Automatic• Body Size: 1/4”• Thread Size: 3/8” Female• Body Material: Brass • Max. Temperature: 240º F• Max. Pressure Rating: 300 PSI • Weight: 0.23 lb
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Accutek® S1021-D Steel Hex Head Plug 1/2 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 12,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.13 lbs
Accutek® S1021-C Steel Hex Head Plug 3/8 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.07 lbs
Features:• Suitable for cold and hot water commercial pressure cleaning applications• Reinforcement: Two layers of high tensile braided steel – R2 Rating• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 4’• Working (Maximum): Up to 6,000 PSI• Burst (Minimum): 18,000 PSI• Color: Grey, “mark-less”• Maximum Temperature: 212° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Weight 1.45 lbs
Features• High Quality, German engineered components• Easy-Pull™ is designed for operators and applications with high-volume of trigger cycling• The Easy-Pull™, German Engineered Technology reduces trigger pulling force by 60% compared to usual competitors spray gun• Easiest opening and holding trigger, requires nearly half the effort of the other rear-entry guns• Proper spray angle for optimal positioning of pressure points• Unitized valve for easy repair• Forged brass housing for maximum strength
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12.0 GPM• Max Temp: 300° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT• Weight: 1.22 lb
