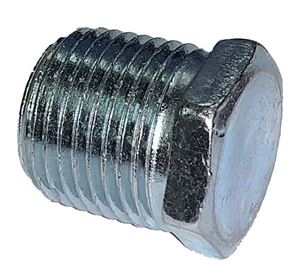

Accutek® S1021-C Steel Hex Head Plug 3/8 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 4,000 PSI
• Burst Pressure: 16,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.07 lbs

General Pump D10076 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI

Features:
• Quick disconnect design
• 304 Stainless steel

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP1FSS
• Weight: 0.06 lb

Fairview 100-DC 1/2 MPT x 3/8 FPT Brass Hex Bushing. Fairview's Bushing Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas to 1,200 PSI WP

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Use with Brass, Steel, Iron Pipe
• Working Pressure: 1,200 PSI
• Burst Pressure: 5,000 PSI
• Material: Brass
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.07 lbs

Fairview PC1468-6A 3/8 Tube OD x 1/8 MPT Brass D.O.T. Push-To-Connect Male NPT Connector Air Brake Fitting. Fairview's Male Pipe Connectors Feature A Labor Saving Full Flow Design That Requires No Tools

Applications:
• Air brake systems. Used with copper tubing for rigid plumbing along frame and air tank
• Use with J844D Nylon Air Brake Tube
• D.O.T. RECOGNIZED FOR ALL AIR BRAKE APPLICATIONS EXCEPT THOSE FOR USE BETWEEN FRAME AND AXLE OR BETWEEN TOWED AND TOWING VEHICLES

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Fitting Type: Push-To-Connect
• Fitting Style: Male NPT Connector
• Tube OD: 3/8"
• Pipe Thread: 1/8" MPT
• Material: Brass
• Working Temperature: -40°F (-40°C) to 225°F (107°C)
• Weight 0.06 lbs
