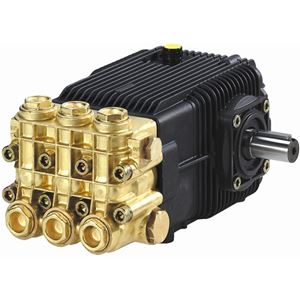

Picture of 4000PSI, 4.0GPM Annovi Reverberi Solid Shaft Pump

4000PSI, 4.0GPM Annovi Reverberi Solid Shaft Pump

SKU: XWA-M4G40N

Brand: Annovi Reverberi - AR North America

$649.84

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


• Triplex Plunger Pump
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 1750 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements: 11.0 BHP
• Bearings are premium SKF tapered roller bearings that provide extra load support, smoother and lower crankcase running temperatures and overall extended pump life
• Max. Fluid Temp.: 160 degrees F.
• Inlet Ports (2): 3/4" BSP
• Discharge Ports (2): 3/8" BSP
• Drive Side: Standard right
• Forged brass head & valve covers
• Plungers are extra thick solid ceramic titanium impregnated for extended seal and pump life
• Weight: 34.0 lb.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of AR Electric Clutch 12V Double Groove 24mm x 7"

AR Electric Clutch 12V Double Groove 24mm x 7"

SKU: CL-522850

The AR North America CL Series electric clutch enables operation of the drive system for your pump without the pump itself being engaged. There can be significant reduction in wear and tear on the pump since it is only operating when called for


Specifications
• Electric clutch for AR XM, RK & XW series pumps
• 12 Volt double groove clutch
• Size: 24mm x 7"
• Works with "A" section belts
• Use with AR-CLMP clutch mounting plate below

  Price: $366.17
Picture of VRT3 Adjustable Unloader 4,500 PSI (Black) EZ Start

VRT3 Adjustable Unloader 4,500 PSI (Black) EZ Start

SKU: VRT3-310EZ

Newly introduced Mecline VRT3 Unloader with EZ start is an updated version of the Arrow Line VRT unloader with a stronger valve body with less porosity. The pressure adjustment handle was redesigned for easier operation at all pressure levels.


New Design Features:
• Interior Design – more efficient flow and operation
• Dual Locking Nuts – vibration resistant for setting maximum pressures
• New Spring Material – more resistant to fatigue, powder paint resists rusting
• Piston – large diameter, more strength and contact area for shifting alignment
• Discharge Nipple – sealing o-ring has been moved to the lower part of the thread, increases hydro strength and fitting strength
• Shutter Valve – hex design, less contact area for smooth shifting (prevents binding). larger size, longer life and more positive shifting


Featuring:
• Built-In easy start valve relieves back pressure during engine start up
• Over sized handle – easier adjustment
• Forged valve body – excellent strength
• Two inlet ports
• Two by-pass ports
• Ultra thick inlet and discharge ports - added strength
• Color coded springs and caps – easy valve identification
• All ports are FNPT


Specifications:
• Spring Color: Black:
• Replaces AL606EZ, AL606XEZ, AL607EZ & AL607XEZ
• Maximum Pressure: 4,495 PSI
• Max. Volume: 8.0 GPM
• Adjustable pressure
• Brass valve body
• Max. Fluid Temp.: 194° F.
• Inlet Port (1): 3/8" FNPT
• Discharge Port (1): 3/8” FNPT
• Bypass Ports (2): 3/8” FNPT
• Weight: 29.6 oz

  Price: $43.53
