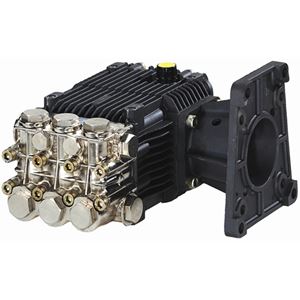

Picture of 4000PSI, 5.5GPM Annovi Reverberi Direct Drive Pump

4000PSI, 5.5GPM Annovi Reverberi Direct Drive Pump

SKU: RKV5.5G40HD-F24

Brand: Annovi Reverberi - AR North America

$472.61

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


• Triplex Plunger Pump
• Direct Drive with Gas Flange 7-18 HP SAE
• Max. Volume: 5.5 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 3400 RPM
• Shaft Diameter: 1” Hollow
• Maximum Horsepower Requirements: 18.96 GHP
• Max. Fluid Temp.: 140 degrees F.
• Inlet Ports (2): 1/2" Female
• Discharge Ports (2): 3/8" Female
• Drive Side: Standard right
• Nickel Plated forged brass head & valve covers
• Solid ceramic plungers
• Weight: 21.0 lb

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

Suttner ST-007 12" Nickel Plated Molded Grip Lance 6,000 PSI 1/4"

SKU: 070000330


Suttner St-007 12” Nickel Chrome Plated Steel 6,000 PSI Lance with Molded Grip. Suitable when using corrosive chemical. Suttner’s most popular lances for cold or hot water applications


Features:
• High Quality, German engineered components
• Comfort technology designed molded grip conforms to the curvature of the hand, allowing to comfortably change positions and work longer hours
• Linear aeration provides continuous air flow between hand and exclusive Suttner "star-shaped" grip
• Grip is directly molded on to lance providing protection and strength
• Threads are rolled on providing consistent sealing and four times the strength than cut threads


Specifications:
• Length: 12"
• Pipe Material: Nickel chrome plated steel
• Grip: 11" Molded "star-shaped"
• Inlet: 1/4” MNPT
• Outlet: 1/4” MNPT
• Maximum Pressure: 6,000 PSI
• Max. Temp.: 300° F
• Weight: 0.65 lbs.

  Price: $8.38

QD Socket, Brass 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D10003


General Pump D10003 Quick Disconnect Coupler Socket Brass 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Brass
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCS2FB
• Weight: 0.20 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $3.62

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D11008


General Pump D11008 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2FS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $0.99

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-M 4,000 PSI

SKU: D11009


General Pump D11009 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-M 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2MS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $1.06
