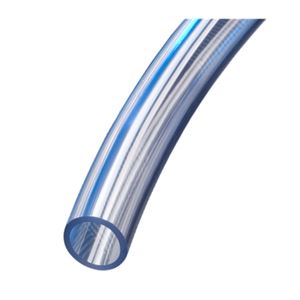

Kuri Tec® K050 Utility grade non-toxic clear food grade PVC tubing for general use applications

Features:
• FDA compliant, non-toxic PVC compound
• High gloss crystal clear appearance with glass smooth interior to reduce sediment buildup
• Self-extinguishing
• Compound hardness 73±3 Shore "A"


Applications:
• Air conditioning Drainage
• Refrigeration Drainage
• Airlines
• Printing press Equipment
• High efficiency furnace drainage
• Transfer of weak chemicals and acids


Specifications:
• Service Temp. Range: +25º F to 150º F
• Nominal ID: 3/8”
• Nominal OD: 1/2”
• Wall Thickness: 1/16”
• Color: Clear
• Working Pressure @ 70º F: 45 PSI
• Length: 100’
• Weight: 4.7 lb.



General Pump 25° (Green) #6.0 Quick Connect (Q) Spray Nozzle

Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability

Specifications
• Tip Angle: 25° (Green)
• Nozzle Size: 6.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump 25° (Green) #5.5 Quick Connect (Q) Spray Nozzle

Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability

Specifications
• Tip Angle: 25° (Green)
• Nozzle Size: 5.5
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Kuri Tec® K050 Utility grade non-toxic clear food grade PVC tubing for general use applications

Features:
• FDA compliant, non-toxic PVC compound
• High gloss crystal clear appearance with glass smooth interior to reduce sediment buildup
• Self-extinguishing
• Compound hardness 73±3 Shore "A"



Applications:
• Air conditioning Drainage
• Refrigeration Drainage
• Airlines
• Printing press Equipment
• High efficiency furnace drainage
• Transfer of weak chemicals and acids



Specifications:
• Service Temp. Range: +25º F to 150º F
• Nominal ID: 5/16”
• Nominal OD: 7/16”
• Wall Thickness: 1/16”
• Length: 100’
• Color: Clear
• Working Pressure @ 70º F: 50 PSI
• Weight: 4.0 lbs.
