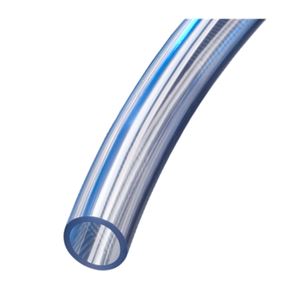

Kuri Tec® K050 Utility grade non-toxic clear food grade PVC tubing for general use applications
Features: • FDA compliant, non-toxic PVC compound • High gloss crystal clear appearance with glass smooth interior to reduce sediment buildup • Self-extinguishing • Compound hardness 73±3 Shore "A" Applications:• Air conditioning Drainage • Refrigeration Drainage • Airlines • Printing press Equipment • High efficiency furnace drainage• Transfer of weak chemicals and acids Specifications:• Service Temp. Range: +25º F to 150º F• Nominal ID: 3/8” • Nominal OD: 1/2” • Wall Thickness: 1/16” • Color: Clear• Working Pressure @ 70º F: 45 PSI • Length: 100’• Weight: 4.7 lb.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
1/2" Stainless Steel Worm Gear Hose Clamp Size 12 - 9/16" to 1-1/4"
Specifications:• Size: 012• Min. Clamp Dia.: 9/16”• Max. Clamp Dia.: 1-1/4”• Band Width: 1/2”• Band, Housing & Screw: Series 300 Stainless Steel• Weight: 0.5 oz
General Pump 40° (White) #3.5 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 40° (White)• Nozzle Size: 3.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
General Pump 40° (White) #4.0 Quick Connect (Q) Spray Nozzle
Specifications• Tip Angle: 40° (White)• Nozzle Size: 4.0• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
