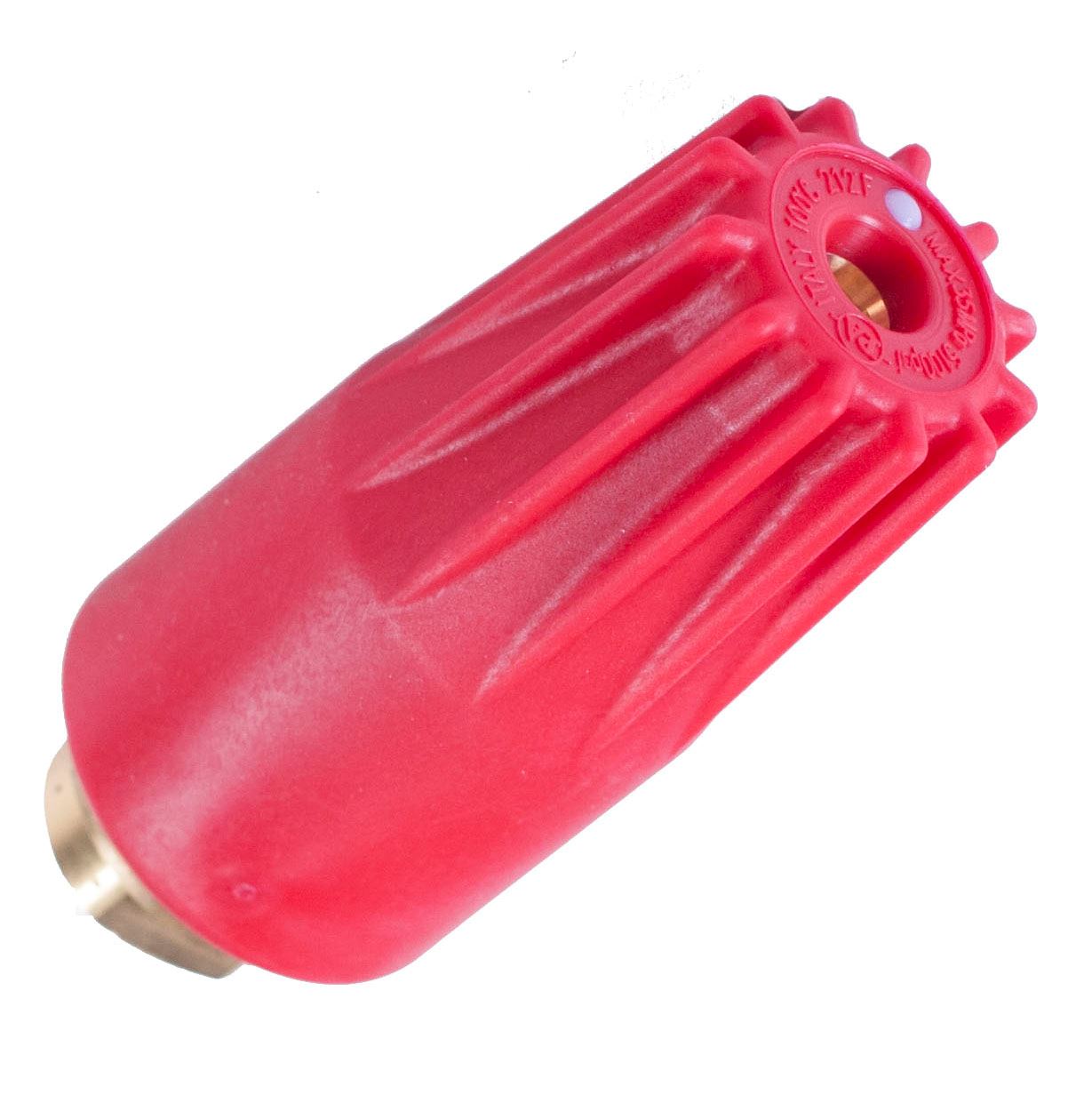

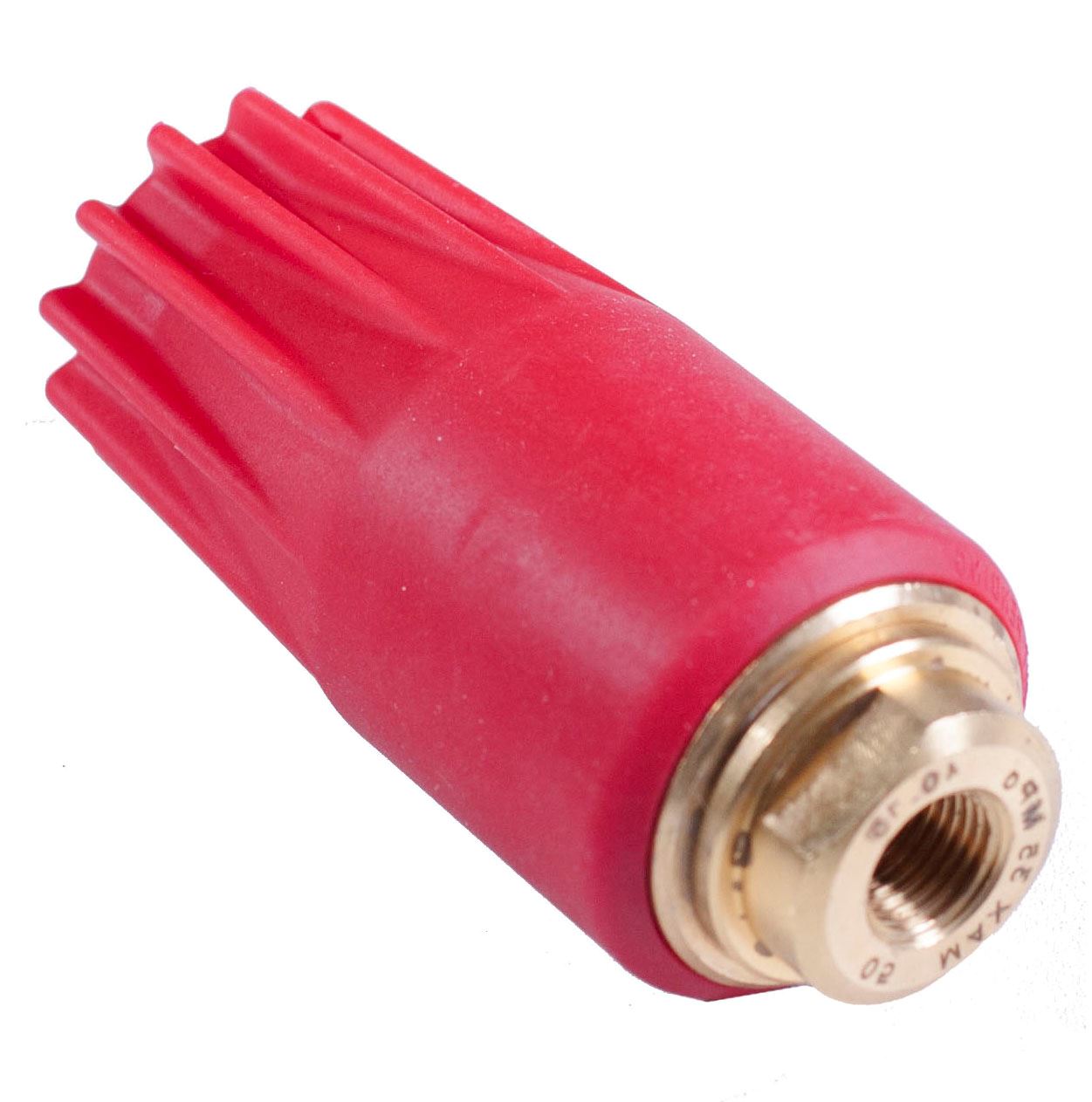

#7.0 Red UR32 Turbo Nozzle 5,100 PSI is shrouded in a resilient rubber housing protector
Features• Offers 0° Impact, but with a 25° pattern• Unique internal stabilization spring design allows for aim & shoot operation• Nozzle can be pointed in any direction• Shock resistant ceramic• High Strength forged brass housing• Durable rubber cover
Specifications • Nozzle Size #7.0 • Max PSI: 5,100• Max GPM: 9.9• Max Temp.: 212° F• Inlet: 1/4" BSP-F• Minimum for operation: 2.4 GPM at 2,600 PSI • Weight: 1.0 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview 100-DC 1/2 MPT x 3/8 FPT Brass Hex Bushing. Fairview's Bushing Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas to 1,200 PSI WP
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Use with Brass, Steel, Iron Pipe• Working Pressure: 1,200 PSI• Burst Pressure: 5,000 PSI• Material: Brass• Pipe threads must be sealed using approved thread sealant• Weight: 0.07 lbs
Comet 1/2" FPT High Pressure Ball Valve 7,250 PSI
Specifications:• Zinc plated steel body• Chrome plated steel ball• Max Pressure: 7,250 PSI• Max Temperature: 212º F• Inlet: 1/2" Female NPT • Outlet: 1/2" Female NPT• Replaces BV-12FF• Weight: 1.25 lbs
General Pump D10079 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-M 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP2MSS• Weight: 0.11 lb
General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer
Features• 20% injection draw rate• Made in the USA• A cost effective solution to your chemical application needs
Injector Specifications:• Size: # 2.3 mm (5.0 to 8.0 GPM)• Max Operating Pressure: 4,500 PSI• Max Temperature: 195° F• Inlet: 3/8” NPT-M• Outlet: 3/8” NPT-M • Chemical Port: 1/4” Hose Barb• Materials: Brass, Stainless Steel, Viton • Note: If between sizes, choose the smaller injector size• Weight: 0.30 lbs
