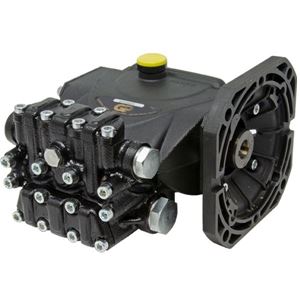

General ET1505E34 2,610 PSI 2.1 GPM Direct Drive Pump flanged to direct couple on electric NEMA 56 C motors

Features:
• “HR” anti-corrosion surface treatment on manifold
• New generation seal package
• Dust protection chamber
• Solid ceramic plungers
• Oversized plunger guide
• Optimized inlet and outlet valves
• Oversized crankcase Hollow shaft, flanged for direct couple to electric motors (NEMA56C)

Specifications:
• Max. Volume: 2.1 GPM
• Max. Discharge Pressure: 2,610 PSI
• Max. Horsepower Requirements: 3.7 EBHP
• Max. Pump Speed: 3,400 RPM
• Max. Fluid Temp.: 165º F
• Oil Capacity: 8.5 oz
• Inlet Port Thread: 1/2"-14 BSP-F
• Discharge Port Thread: 3/8"-19 BSP-F
• Shaft Diameter: 5/8” Hollow
• Dimensions – Nominal: 7.3" x 7.4" x 5.5"
• Weight: 11.0 lb
