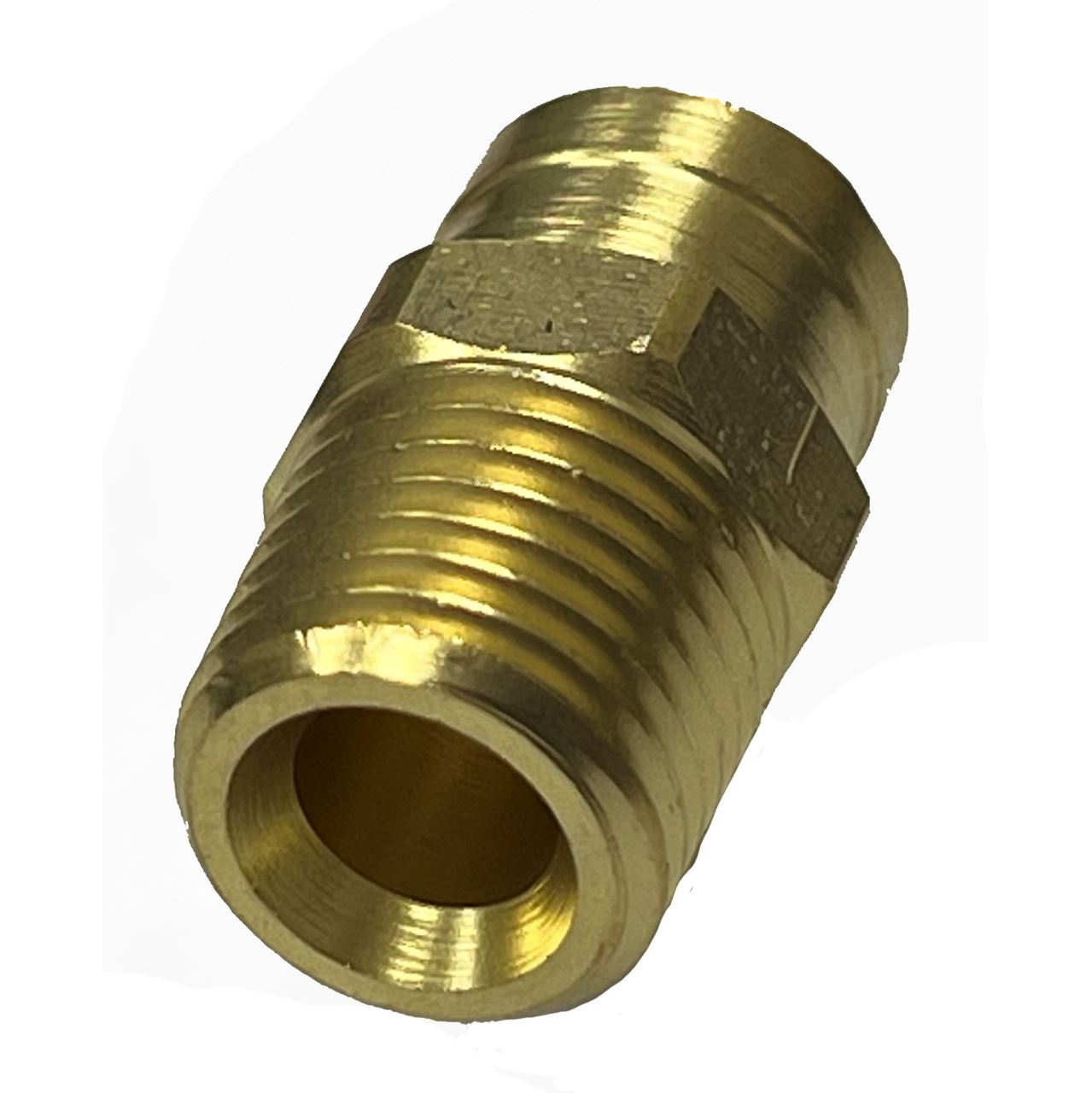

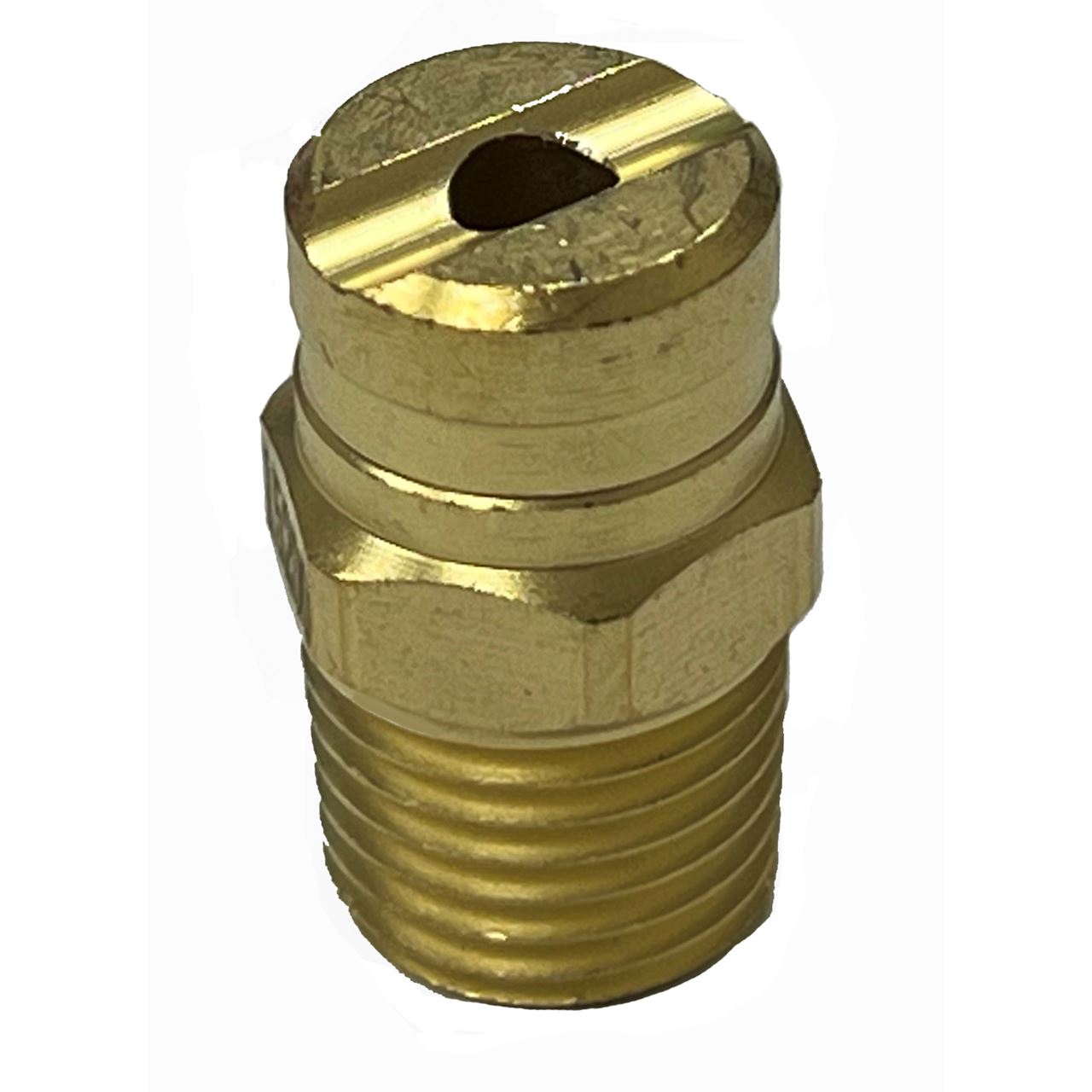

General Pump 15° x #4.5 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 15°
• Nozzle Size: 4.5
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

PA RL 56 Compensating Spray Gun 5,650 PSI 8 GPM. New mechanical device with double connecting rods to guarantee less strain when opening and holding

Features
• Covered by shockproof plastic semi-housings
• Sst seat and ball
• Internal structure in brass and Sst
• Ergonomic construction
• Minimum fatigue for trigger opening and use
• New mechanical opening device with double connecting rods
• New trigger design, rotating on a fixed pin to guarantee better mobility and steadiness
• No fluid passage upon trigger release

Specifications
• Rated Pressure: 5,100 PSI
• Permissible Pressure: 5,650 PSI
• Max Flow: 8.0 GPM
• Max Temp: 320° F.
• Inlet: 3/8" Female NPT
• Outlet: 1/4" Female NPT
• Use # 40.0261.00 matching 41” lance
• Weight: 23.70 oz

New Design Features:
• Interior Design – more efficient flow and operation
• Dual Locking Nuts – vibration resistant for setting maximum pressures
• New Spring Material – more resistant to fatigue, powder paint resists rusting
• Piston – large diameter, more strength and contact area for shifting alignment
• Discharge Nipple – sealing o-ring has been moved to the lower part of the thread, increases hydro strength and fitting strength
• Shutter Valve – hex design, less contact area for smooth shifting (prevents binding). larger size, longer life and more positive shifting

Featuring:
• Integral switch detects full bypass mode
• Use for burner control or time delay switch
• Over sized handle – easier adjustment
• Forged valve body – excellent strength
• Two by-pass ports
• Ultra thick inlet and discharge ports - added strength
• Color coded springs and caps – easy valve identification
• All ports are FNPT

Specifications:
• Spring Color: Black
• Replaces AL687 & MV550MS
• Maximum Pressure: 4,500 PSI
• Max. Volume: 8.0 GPM
• Micro Switch 6 AMP, 250 V
• Adjustable pressure
• Brass valve body
• Max. Fluid Temp.: 194° F.
• Inlet Port (1): 3/8" FNPT
• Discharge Ports (1): 3/8” FNPT
• Bypass Ports (2): 3/8” FNPT
• Weight: 33.3 oz
