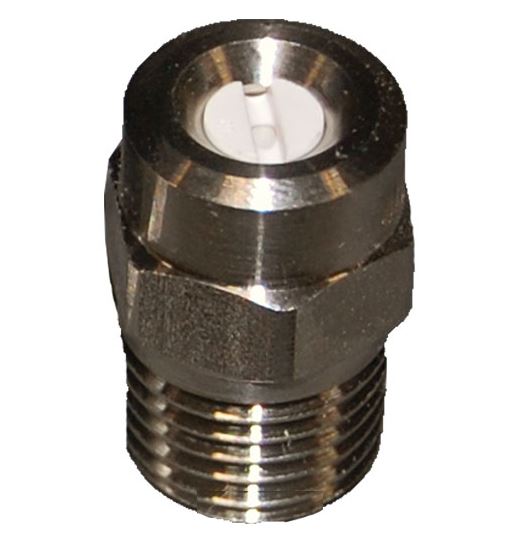

Mecline 25° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features

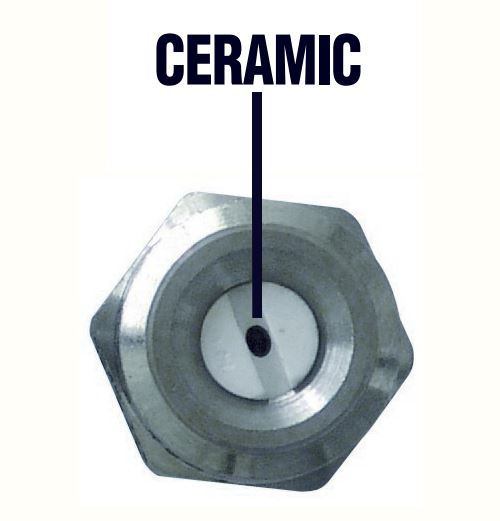

• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications

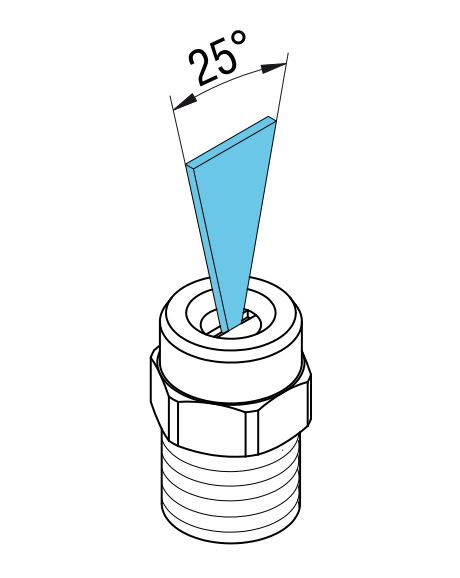

• Flat fan jet angle: 25°
• Nozzle Size: 7.0
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

>

General Pump D10001 Quick Disconnect Coupler Socket Brass 1/4” x 1/4" NPT-F 5,000 PSI

Features:
• Quick disconnect design
• Brass
• EPDM O-Ring

Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCS1FB
• Weight: 0.15 lb

Spraying Systems 1/4" WashJet® 40º MEG Spray Nozzle

Features
• High impact flat fan spray pattern with uniform distribution
• Medium-sized drops
• Quick visual reference for spray alignment with milled side flats
• Longer wear life and flow control accuracy with especially hardened stainless steel construction

Specifications
• Nozzle Size: 15.0
• Spray Angle: 40º
• Max Pressure: 3,000 PSI
• Inlet: 1/4" Male NPT
• Weight: 0.75 Oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Features:
• High Quality, German engineered components
• Comfort technology designed molded grip conforms to the curvature of the hand, allowing to comfortably change positions and work longer hours
• Linear aeration provides continuous air flow between hand and exclusive Suttner "star-shaped" grip
• Grip is directly molded on to lance providing protection and strength
• Threads are rolled on providing consistent sealing and four times the strength than cut threads

Specifications:
• Length: 48"
• Pipe Material: Nickel chrome plated steel
• Grip: 19.25" Molded "star-shaped"
• Inlet: 1/4” MNPT
• Outlet: 1/4” MNPT
• Maximum Pressure: 6,000 PSI
• Max. Temp.: 300° F
• Weight: 1.84 lbs.
