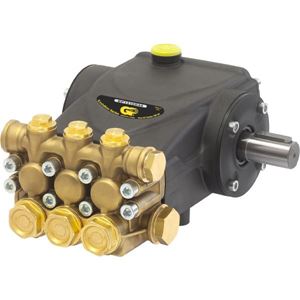

General EP1512S17 Triplex EP Series 1,750 RPM Solid Shaft Plunger Pump.

Features:
• Triplex plunger pump
• New Forged brass manifold
• New plunger guide bushing (patent pending)
• Solid ceramic plungers with dual guide system
• New dual diameter plunger guide
• New optimized outlet valves
• New dual lip oil seal

Specifications Sheet

WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

Specifications:
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 2.9 GPM
• Max. Discharge Pressure: 3,045 PSI
• Horsepower: 6.0 EBHP
• Max. Pump Speed: 1,750 RPM
• Maximum Inlet Pressure: 125 PSI
• Oil Capacity: 15 oz
• Max. Fluid Temp.: 165 degrees F.
• Inlet Port Thread: 1/2”-14 BSP-F
• Discharge Port Thread: 3/8”-19 BSP-F
• Shaft Diameter: .945 in./24 mm
• Dimensions – Nominal: 9.5” x 8.38” x 5.1”
• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Weight: 15.4 lb.
