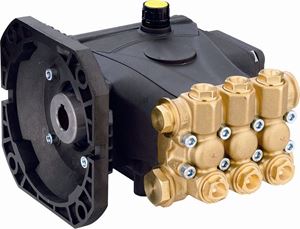

Annovi Reverberi / AR North America RCV E Left Handed Version with F8 flange series pumps are designed to direct drive on electric NEMA 56 C motors ranging from 1.5 – 6.0 HP. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RCV is a result of our combined 60 years of pumps building experience and expertise

Features
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft

Specifications
• Max. Volume: 2.0 GPM
• Max. Discharge Pressure: 2,500 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 5/8” Hollow
• Drive Side: Left
• Max. Horsepower Requirements: 3.4 EBHP
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 9.81 oz
• Weight: 11.0 lb.
