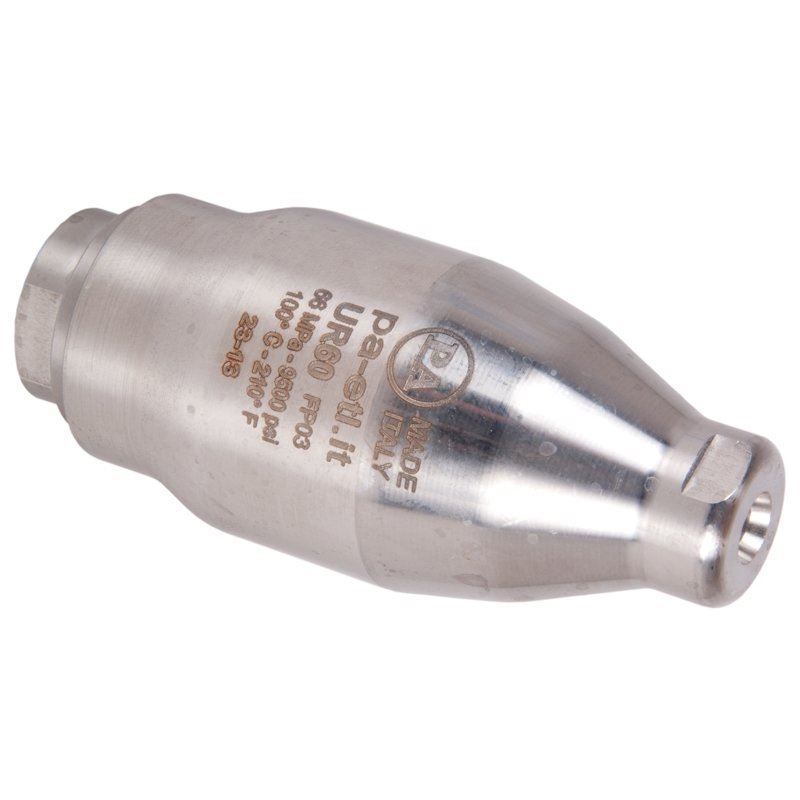

#3.0 PA UR60 / GP YR87K Industrial Duty Rotating Nozzle. This Sst. rotating nozzle with Tungsten Carbide Nozzle & Seat is rated up to 8,700 PSI.
Features• Offers 0° Impact, but with a 20° pattern• Heavy-duty, rotating nozzle • Ideal for blasting applications
Specifications Sheet
Specifications • Nozzle Size #3.0• Max PSI: 8,700• Min PSI: 2,600• Max Flow Rate: 11.8 GPM• Min Flow Rate: 1.6 GPM • Max Temp.: 195° F• Min Temp.: 41° F • Inlet Port: 1/4” BSP-F• Dimensions: 1.65” x 3.82”• Materials: Stainless Steel, Seat and nozzle in tungsten carbide • Weight: 19 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Features• Increases cleaning efficiency as much as 200%• The 0° rotation creates a cleaning and tearing action• Ideal for hard surfaces• Improved materials for longer life
Specifications • Nozzle Size # 4.0 • Max PSI: 5,070• Max Temp.: 212° F• Inlet: 1/4" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 0.90 lbs
Kuriyama Alfagomma® Argus QX 1/4" Female Screw Coupling x 1/4" MNPT 10,000 PSI ISO 14540. Thanks to the exclusive ALFAGOMMA TOP COAT – Galvanic Coating – proprietary technology, the complete range of ARGUS Quick release couplings can boast an extraordinary wear and corrosion resistance, so as to guarantee a longer lifespan to your system
Features:• ARGUS QX high pressure couplings can be used for connecting and disconnecting hydraulic lines• Their robust construction and tested components make them ideally suited for high and intermittent pressure loads• During the coupling action, valves that release and/or block the flow are automatically activated• The QX quick release coupling, formed by coupling plug and coupling socket, is coupled by a screwing action with the hand nut of the plug component
Specifications:• Product Type: Female Coupler with Male Thread• Dash: 04• Inside Diameter: 1/4”• Working Pressure: 10,150 PSI• Burst Pressure: 40,650 PSI • Norm: ISO 14540• Thread: NPTF• Temperature: -22º F - 257º F• End Type: Female• Second End Type: 1/4-18 MNPT• Weight: 0.30 lb
Kuriyama Alfagomma® Argus QX 1/4" Male Screw Coupling x 1/4" FPT 10,000 PSI ISO 14540. Thanks to the exclusive ALFAGOMMA TOP COAT – Galvanic Coating – proprietary technology, the complete range of ARGUS Quick release couplings can boast an extraordinary wear and corrosion resistance, so as to guarantee a longer lifespan to your system
Specifications:• Product Type: Male Coupler with Female Thread• Dash: 04• Inside Diameter: 1/4”• Working Pressure: 10,150 PSI• Burst Pressure: 40,650 PSI • Norm: ISO 14540• Thread: NPTF• Temperature: -22º F - 257º F• End Type: Male• Second End Type: 1/4-18 FPT• Weight: 0.20 lb
