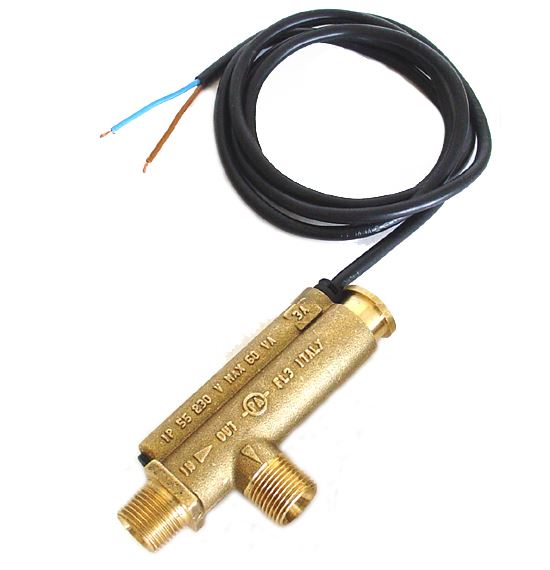

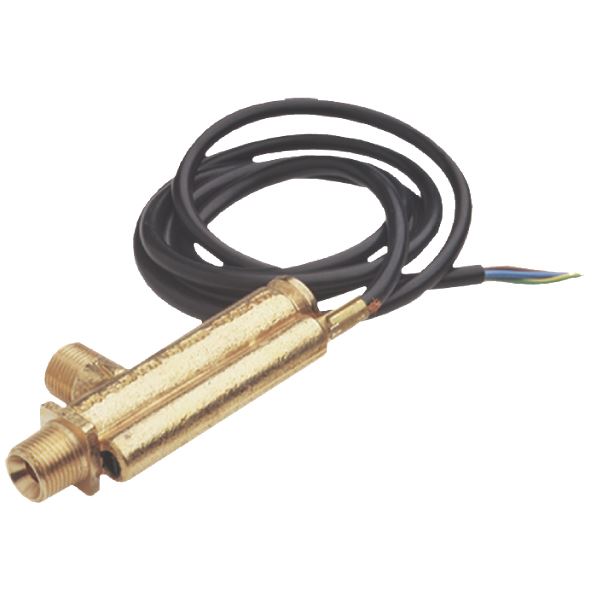

PA FL3 / General Pump YFLOSWITCH 4,050 PSI Mount In Any Position Flow Switch
Features• Can be installed horizontally or vertically• Reed switch with high resistance• Reduced dimensions both axial and lateral• Magnetic drive obtained by the plunging piston movement• Electrical insulation: class IP55• Magnet covered by plastic casing to minimize the braking effect of metal particles and scale
FL3 Data Sheet
Specifications• Rated Pressure: 3,650 PSI• Permissible Pressure: 4,050 PSI• Rated Flow Rate: 8 GPM• Activation Flow Rate: Horizontal: 0.8 GPM• Activation Flow Rate: Vertical: 0.8 GPM • Max Working Temp: 165° F• Max. Voltage: 230 V• Max. Curr. Strength: 3 A• Cable Length: 49.2" (1250 mm) • Electric Cable: 2x0,5 mmq. - 0• Electrical insulation: 55 IP - 0• Inlet: 3/8 Bsp F• Outlet: 3/8 Bsp F• Weight: 10.58 oz.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Kuri Tec® CLEARBRAID® K3155 Series RF PVC Hose. A lightweight standard wall crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications
Features:• Formulated with ingredients in compliance with FDA requirements • Meets USDA, 3A and CA Prop 65• Constructed with non-toxic compounds• Crystal clear – allows visual confirmation of product flow• Longitudinally-reinforced to reduce elongation under pressure• Self-extinguishing• Resistant to chemicals
Specifications:• Service Temp. Range: 25º F to 150º F• Nominal ID: 1/4” • Nominal OD: 0.438” • Length: 300’• Working Pressure @ 70º F: 250 PSI• Working Pressure @ 122º F: 150 PSI• Weight: 17.0 lbs.
Mecline 40° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT
Features• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts• Ceramic insert is resistant to wear• The ceramic insert guarantees a more precise and stronger stream• Stainless Steel AISI303 body
Specifications• Flat fan jet angle: 40°• Nozzle Size: 12.0• Rated Pressure: 4,500 PSI• Permissible Pressure: 5,075 PSI • Rated Temperature: 300° F• Inlet: 1/4” Male NPT• Weight: 0.63 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
