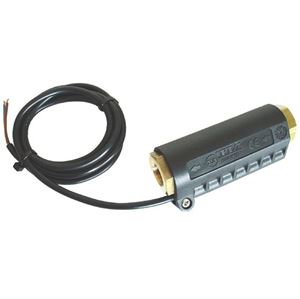

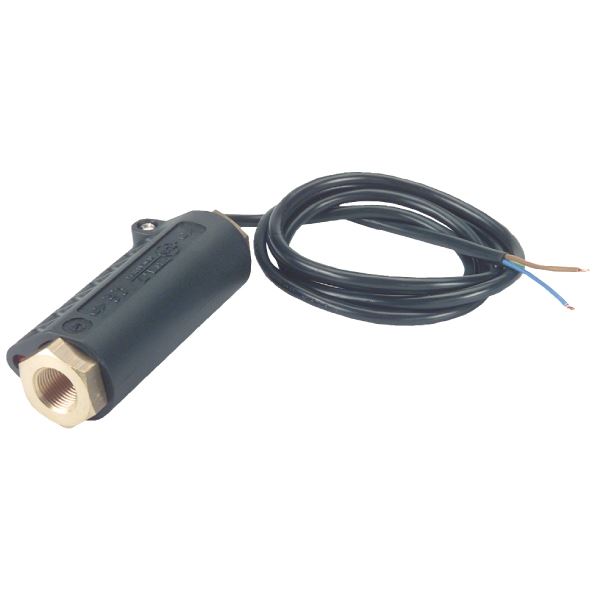

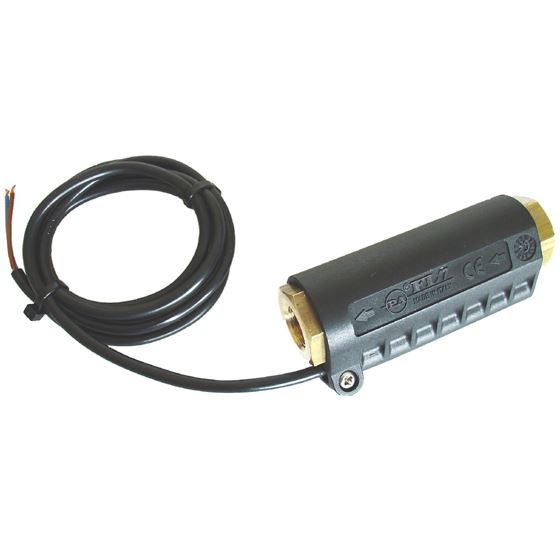

PA FL7 / General Pump YFL7SWITCH 5,650 PSI Mount In Any Position Flow Switch

Features
• Can be installed horizontally or vertically
• Magnetic drive obtained by the plunging piston movement
• Electrical insulation: class IP55
• Magnetic probe casing made of antiflame material

FL7 Data Sheet

Specifications
• Rated Pressure: 5,100 PSI
• Permissible Pressure: 5,650 PSI
• Max Flow Rate: 8 GPM
• Activation Flow Rate: Horizontal: 1.6 GPM
• Activation Flow Rate: Vertical: 2.4 GPM
• Max Working Temp: 165° F
• Max. Voltage: 230 V
• Max. Curr. Strength: 3 A
• Cable Length: 49.2" (1250 mm)
• Electric Cable: 2x0,5 mmq. - 0
• Electrical insulation: 55 IP - 0
• Inlet: 3/8 Bsp F
• Outlet: 3/8 Bsp F
• Weight: 15.38 oz.
