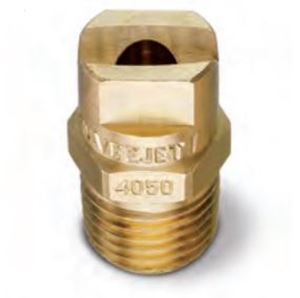

Spraying Systems 65º Brass H-U 1/4" (M) VeeJet® Spray Nozzle. As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray

Features
• Flat fan type, tapered edge spray pattern
• Consistent performance over the industry's largest range of flow rates and pressures
• One-piece design
• Uniform spray distribution with flow rates from .012 to 1237 gpm
• Operating pressures up to 500 psi

TECHNICAL DATA SHEET

Specifications
• Spray Angle: 65º
• Capacity Size: 20
• Operating Pressure: Up to 500 PSI
• Material: Brass
• Inlet Connection: 1/4" Male thread
• Length: 1.0”
• Hex: 9/16”
• Net Weight: 0.8 Oz
