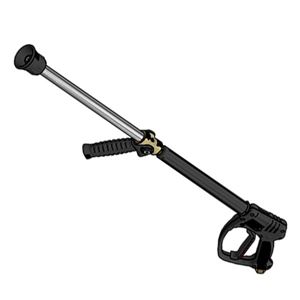

General Pump YG36LA37SW Wash Down Gun/Lance Assembly 8 GPM 3,650 PSI
Features:• Minimizes fatigue for the operator• Inlet swivel• 37 inch lance • Shockproof resistant housing• Stainless Steel seat and ball• Internal construction of brass and Stainless Steel
Specifications Sheet
Specifications:• Maximum Volume: 8.0 GPM• Maximum Discharge Pressure: 3,650 PSI • Maximum Fluid Temperature: 195° F• Inlet Port Thread: G 3/8” - F• Ceramic Nozzle: #12 (2 mm)• Materials: Stainless Steel, Brass, Plastic, Buna-N, Teflon• Weight: 6.0 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 25° (Green) #5.5 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 25° (Green)• Nozzle Size: 5.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
General Pump 15° (Yellow) #5.5 Quick Connect (Q) Spray Nozzle
Specifications• Tip Angle: 15° (Yellow)• Nozzle Size: 5.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
General Pump 0° (Red) #5.5 Quick Connect (Q) Spray Nozzle
Specifications• Tip Angle: 0° (Red)• Nozzle Size: 5.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Features:• Automatic trigger shutoff and trigger lock
Specifications:• Max Pressure: 4,000 PSI• Max Flow: 7.0 GPM• Max Temp: 300° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT • Weight: 18 oz
